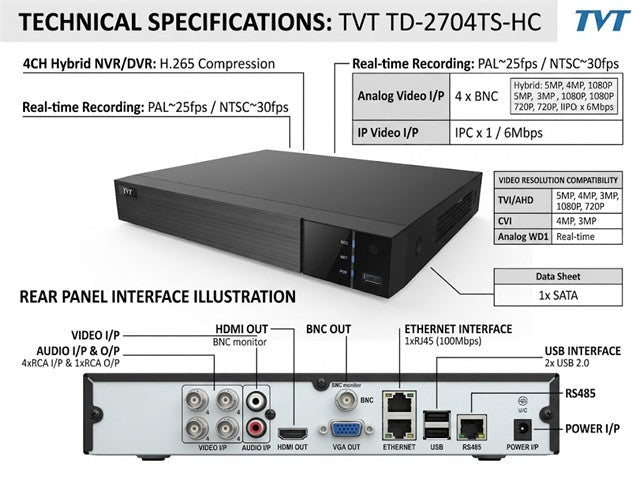

DVR 4CH Hybrid H.265, Video I/P 4xBNC, IPCx1/6Mbps, TVI/AHD:5MP/4MP/3MP 1080P/720P,CVI:4MP/3MP WD1 Real Time (PAL~25fps/ NTSC~30fps),SATAx1,RS485x1, USBx2, 1xHDMI, VGA, BNC, 4xRCA I/P& 1xRCA O/P, Interface 1XRJ45 100mbs

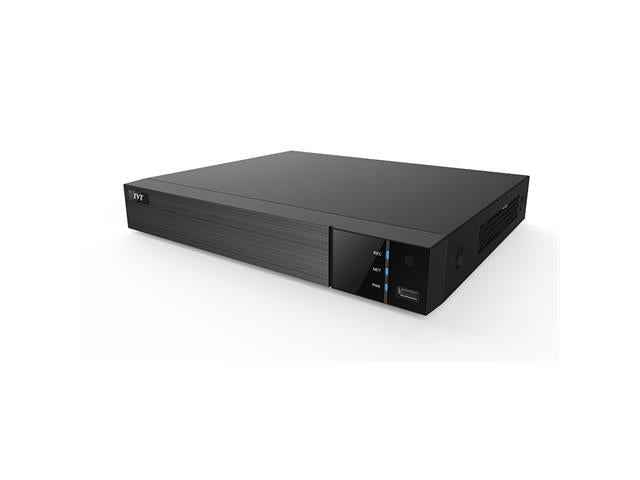

4CH Hybrid H.265 DVR


TD-2700TS-HC series are 4 / 8 CH 5MP Lite high definition DVRs with ability to connect analog and IP cameras simultaneously, which adopt the standard H.265 high profile compression format and the most advanced SOC technique to ensure real time recording in each channel and realize outstanding robustness of the system. TD-2700TS-HC support 4 / 8 CH video input, 4 / 8 CH audio input, simultaneous 4 / 8 CH playback. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.


  • 4 / 8 CH TVI / AHD video input, support 5MP / 4MP / 1080P / 720P / 3MP / WD1
  • 4 / 8 CH CVI video input, support 4MP/ 1080P / 720P / WD1
  • 4 / 8 CH DVRs default support 2 / 4 CH IPC 5MP / 4MP / 3MP / 1080P / 960P / 720P
  • Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
  • Multi-mode recording: manual / timer / motion
  • Playback : 4 / 8 CH simultaneously playback
  • Search: time slice, time, event ( manual, motion ), tag search
  • Express and flexible backup via USB, network and so on
  • Pentaplex: preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
  • Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
  • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
  • Multi-user online simultaneously
  • Authorization management, log review and device status review
  • 1080P output, true high resolution display
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phone and PAD
  • Powerful smart phone & Pad surveillance with iOS and Andriod OS


Additional Information

Device DVR
Type 4CH | Hybrid | H.265
