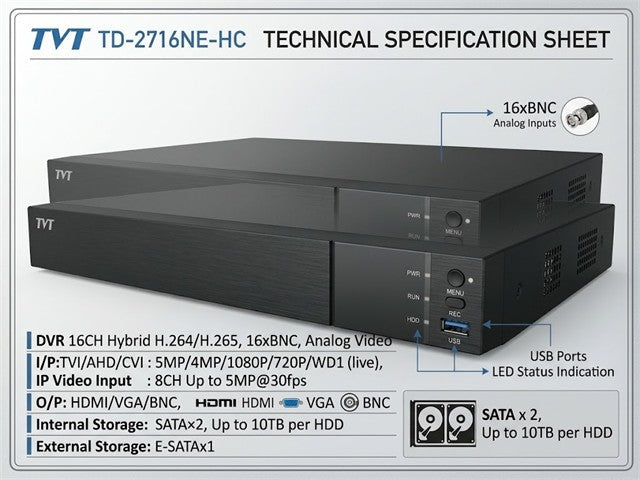

DVR 16CH Hybrid H.264/5, 16XBNC, Analog Video I/P:TVI/AHD/CVI : 5MP/4MP/1080P/720P/WD1 (live), IP Video Input : 8CH Up to 5MP@30fps , O/P: HDMI/VGA/BNC, SATA×2, Up to 10TB per HDD; E-SATAx1

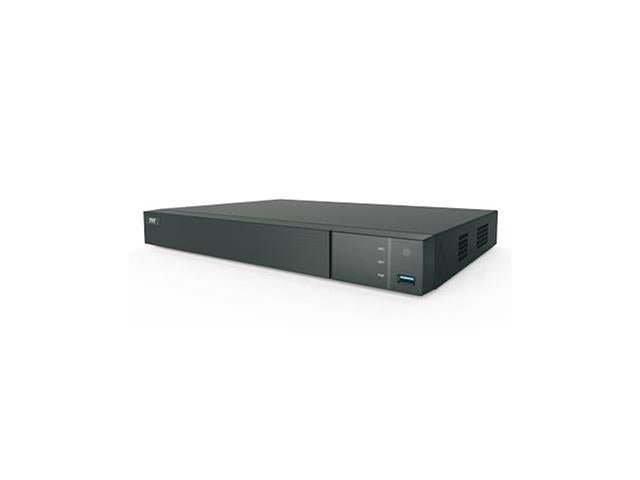

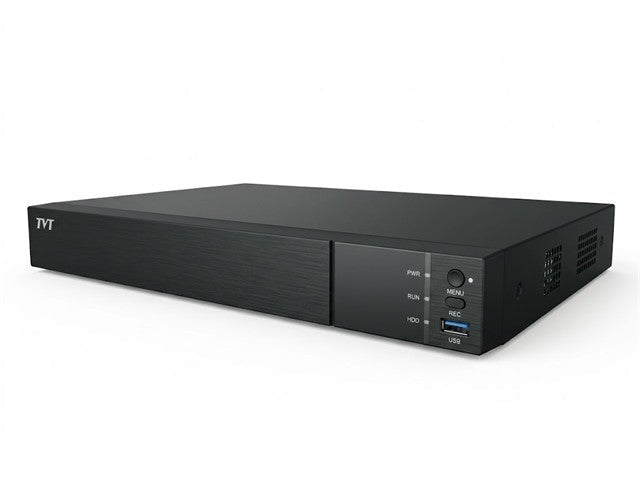

16CH Hybrid DVR


TD-2716NE-HC supports 16 CH 1080P analog and IP video input simultaneously. It adopts the standard H.265 high profile compression format and the most advanced SOC technique to ensure real time recording in each channel and realize outstanding robustness of the system. TD-2716NE-HC supports 16 CH video input, 8 CH audio input and simultaneous 16 CH playback. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.


  • Supports16CHTVI/AHD/CVI5MP/4MP/ 1080P/720P/WD1video input
  • Supports 8CH5MP/4MP/3MP/1080P/960P/720PIPvideoinput
  • StandardH.265highprofilecompressionformattogethigh-qualityvideo at much lower bit rate
  • Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
  • Multi-mode recording: manual / timed / motion/AI recordingPlayback : 16 CH simultaneously playback
  • Search: time slice, time, event, tag and smart search
  • Express and flexible backup via USB, network and so on
  • Pentaplex: preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol
  • Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
  • Support remote network transmission and remote surveillance with mobile device
  • Authorization management, log review and device status review
  • 1080P output, true high resolution display
  • Supports PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Supports NAT function and QRCode scanning by mobile phones
  • Powerful mobile surveillance by smart phones with iOS andAndriod OS


Model TD-2716NE-HC
System OS Embedded Linux
Video Analog Video Input BNC × 16
BNC interface (1.0Vp-p; 75Ω)
TVI/AHD/CVI : 5MP/4MP/1080P/720P/WD1 (live)
IP Video Input 8CH
Up to 5MP@30fps
Total Input 24CH
Output HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768
BNC × 1 : CVBS ( used as the main or spot output )
Compression H.264/H.265
Multi-screen Display 1/4/6/8/9/13/16/25
Audio Input RCA × 8
Output RCA × 1 (linear, 600Ω)
Two-way audio Take up channel one audio input
Compression G.711(U/A)
Record Resolution 5MP Lite/4MP Lite / 1080P/1080P Lite/720P/WD1
Frame Rate Analog Channel:
5MP Lite@10fps (PAL / NTSC)
4MP Lite/1080P@12fps(PAL) / 15fps (NTSC)
1080P Lite/720P/WD1/D1@25fps (PAL) / 30fps (NTSC) IP Channel: 25fps (PAL) / 30fps (NTSC)
Bit Rate 32Kbps ~ 5Mbps
Mode Manual, timer, motion, smart event
Playback Playback 16CH
Search Time slice / time / event / tag search
Smart Search Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Function Play, pause, FF, FB, digital zoom, etc.
Alarm Mode Manual, motion, exception, smart event
Input 16CH
Output 4CH
Network Interface RJ 45 1000Mbps × 1
Incoming Bandwidth 32Mbps
Outgoing Bandwidth 96Mbps
Client Connection Max. 10 users access
MobileDevice OS iOS, Andriod
Storage HDD SATA×2, up to 10TB per HDD; E-SATA×1
  Local Backup U disk, USB mobile HDD
Backup Network Backup Yes
Port RS 485 Yes (half-duplex), connect to PTZ or keyboard
USB USB 2.0 ×1; USB3.0×1
Remote Controller Optional
Others Power Supply DC12V/4A
Consumption ≤ 15W ( without HDD )
Dimensions(mm) 380 × 268 × 45 ( W × D × H )
Working Environment -10~50°C, 10%~90% (humidity)
Certificate CE, FCC
Environmental Protection Directive EU RoHS, WEEE, REACH

Additional Information

Device DVR
Type 16CH | Hybrid
