TVT TD-3116B2-16P

Name: TVT TD-3116B2-16P - Communica [Part No: TVT TD-3116B2-16P]
Brand: Tvt
SKU: TVT TD-3116B2-16P
Price: 3898 ZAR
Availability: OutOfStock

SKU: TVT TD-3116B2-16P

BRAND: Tvt

Sold Out
R 4,482.70_{(inc VAT)}
R 3,898.00_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: CCTV Products & Accessories

Category: NVR

NVR 16CH PoE HD H.264/5, Network Bandwidth 112Mbps, 5MP/4MP/3MP/1080P/960P/720P (PAL~25fps/ NTSC~30fps)SATAx2, USB2.0x2, 1xHDMI, VGA, 1xRCA I/P&O/P, 380 × 268 × 52(W×D×H), ARM Cortex A7, Bit Stream 32Kbps-8Mbps, PSU 48VDC

Overview

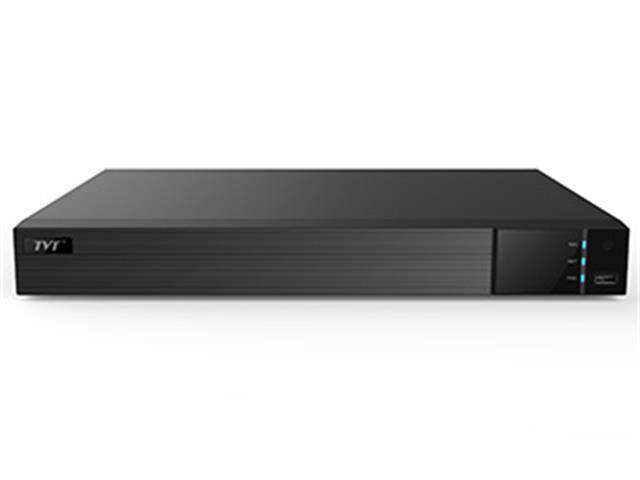

TD-3116B2-16P series are 16 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P high definition PoE NVRs, which adopt the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. TD-3116B2-16P series integrate with 16 PoE network ports, support 16 CH IPC direct connection to NVR , simultaneous 16 CH playback, and 4K high definition display. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.

Features

Support 16 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-mode recording: manual / timer / motion / sensor
Playback : 16 CH simultaneous playback
Search : time slice, time, event ( manual, sensor, motion ), tag search
Express and flexible backup via USB, network and so on
Pentaplex : preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol and CMS supported
Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
16 PoE network ports, support IPC direct connection to NVR; support PoE power supply
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Multi-user online simultaneously
Authorization management, log view and device status view
1080P output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phone and PAD
Powerful smart phone & Pad surveillance with iOS and Andriod OS

Specification

Audio	Input	16 CH IPC audio input
	2-way Audio	RCA×1
	Local Output	RCA×1
Record	Resolution	5MP、4MP、3MP、1080P、960P、720P
	Frame Rate	25fps/30fps(PAL/NTSC）
	Bite Stream	32Kbps-8Mbps
	Image Quality	5 Level
Playback	Simultaneous Playback	Max 16 CH
Network	Interface	RJ45 10/100/1000 Mbps × 1；RJ45×16（PoE Port）
Network	Network Protocol	TCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTP、ONVIF、GB28181
Storage	HDD	SATA×2
Storage	Max Capacity for 1 single HDD	8T
Backup	USB Backup	Yes
Backup	eSata Backup	No
Interface	Alarm In	No
	Alarm Output	No
	Communication	No
	Remote	Optional
	USB	USB2.0×2 ( one in the front panel and the other in the rear panel )
Others	Case	1U

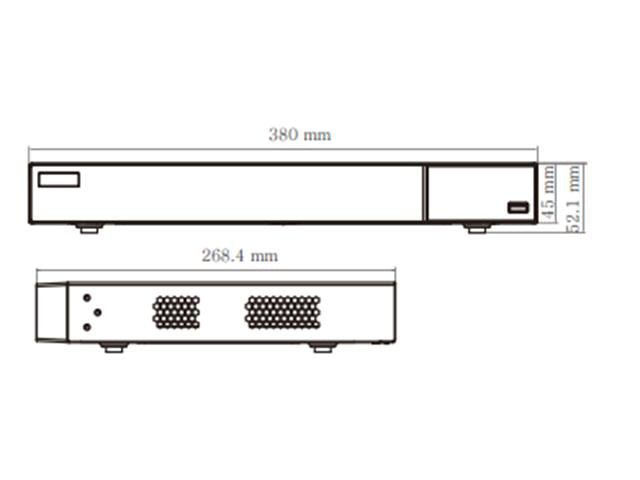

	Dimensions(mm )	380×268×52(W×D×H)
	Power Supply	DC48V
	Consumption	≤ 15W ( without HDD )
	Work Environment	-10 ～ 50 ℃，10% ～ 90% humidity

Downloads

Datasheet Download

Experience unparalleled security with the TVT TD-3116B2-16P NVR, featuring 16 channels of high-definition recording at resolutions up to 5MP. This advanced PoE NVR supports simultaneous playback and remote access, ensuring your surveillance needs are met whether at home or on the go. With robust storage options and an intuitive user interface, safeguard your property effortlessly and efficiently.
