Bullet Camera AHD, 2MP IR Water-proof, 1.27”CMOS, 1920x1080, 2.8mm Lens, 20~30m IR, Day-Night, AHD/TVI/CVI/CBVS Output Available, IP67

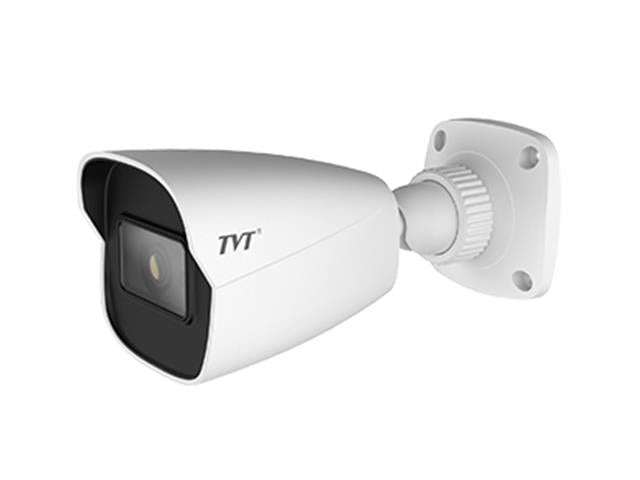

2MP HD Analog IR Bullet Camera
Feature(s)
- 1080P real-time image, high resolution, true color
- AHD / TVI / CVI /CVBS standard and lossless video output
- Up to 1000 TVL resolution
- CMOS progressive scan, perfectly capture the moving object
- Support OSD menu
- High speed, long distance and real time transmission
- Auto color to B / W at low illumination
- Support ICR switch, true day / night, digital WDR
- Support noise reduction function
- 20 ~ 30m IR night view distance
- IP67
- Support COC

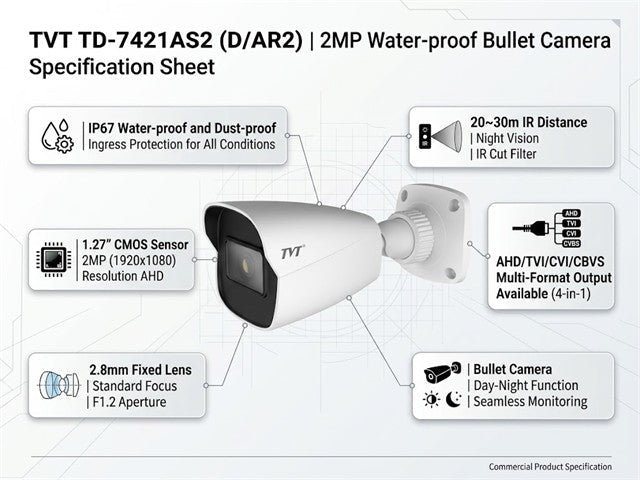

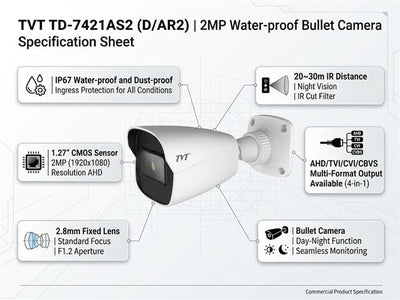

Specifications
Camera
- Image Sensor : 1 / 2.7 "CMOS
- Resolution : 2MP
- Image Size : 1920 x 1080
- Video Output : AHD / TVI /CVI/CVBS
- Image System : PAL / NTSC
v
- Electronic Shutter : Auto; 1 / 50s ~ 1 / 100000s ( PAL ); 1 / 60s ~ 1 / 100000s ( NTSC )
- IR Distance : 20 ~30 m
- Frame Rate : 30fps(60Hz); 25fps (50Hz)
- Min. Illumination : 0 lux (IR ON)
- Lens : 2.8 mm
- Lens Mount : M12
- S / N Ratio : ≥52dB ( AGC OFF )
- Ingress Protection : IP 67
Functions
- Function Control : OSD ( COC Control )
- Day & Night : ICR
- Digital WDR : Yes
- Digital NR : Yes (2D DNR)
- AGC : Yes
- Auto White Balance : Yes
- BLC : Yes
- Front Light Compensation : Yes
- Defog : No
- HLC : No
- Sharpness : Yes
- Mirror : Yes
- Smart IR : Yes
- Image Setting : Yes
- Defect Correction : Auto
- Language : Chinese and English
- Angle Adjustment : Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360°
Others
- Power Supply : DC12V ( ± 10% )
- Power Consumption : IR OFF : < 1W; IR ON : < 4W
- Working Environment : - 30 °C ~ 50 °C, 10 % ~ 90 % (relative humidity)
- Dimensions ( mm ) : 167.5 x 74.5 x 74.5
- Weight ( net ) : Approx. 0.37KG
