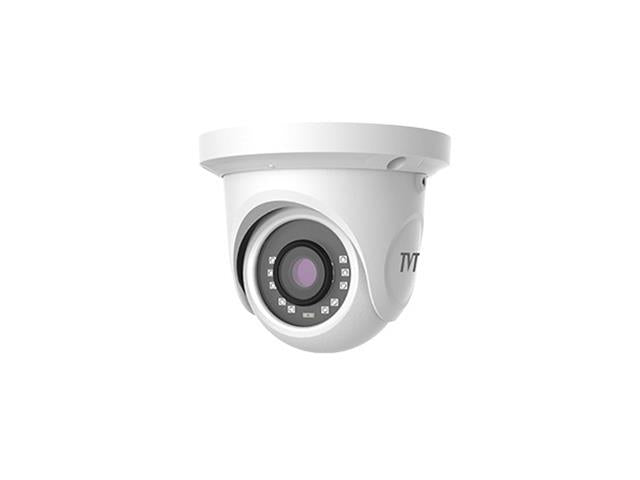

TVT TD-7554AS (D/IR1)
SKU: TVT TD-7554AS (D/IR1)
BRAND: Communica
R 569.01 (inc VAT) R 494.79 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
Dome Camera AHD/TVI/CVI 5MP IR, 20fps, 1/2.5”CMOS, 2560x1936, WDR, 3.6mm Lens, 10~20m IR, Day-Night, ICR, PAL/NTSC, IP66
5MP HD Analog IR Dome Camera
Feature(s)
5MP real-time image, high resolution, true color
AHD / TVI / CVI standard and lossless video output
Up to 1400 TVL resolution
CMOS progressive scan, perfectly capture the moving object
Support OSD menu
High speed, long distance and real time transmission
Auto color to B / W at low illumination
Support ICR switch, true day / night
10 ~ 20m IR night view distance
IP66 ingress protection
Support COC

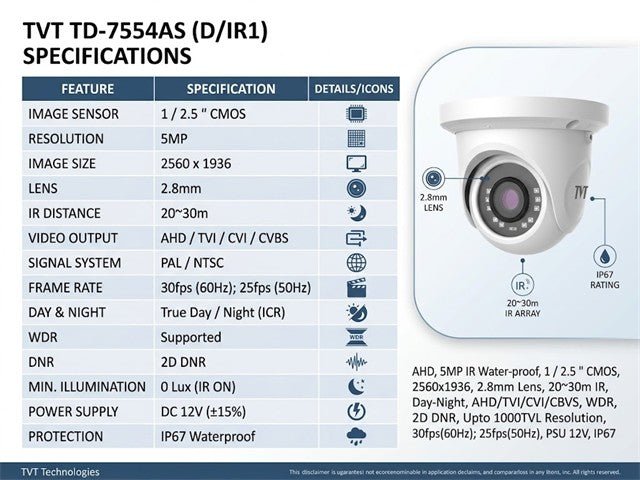

Specifications
Camera
Image Sensor : 1 / 2.5 "CMOS
Resolution : 5MP
Image Size : 2560 x 1936
Video Output : AHD / TVI /CVI
Image System : PAL / NTSC
Electronic Shutter : Auto
IR Distance : 10 ~20 m
Frame Rate : 20fps
Min. Illumination : 0 lux (IR ON)
Lens : 3.6 mm
Lens Mount : M12
S / N Ratio : ≥52dB ( AGC OFF )
Water-proof : IP 66
Functions
Function Control : OSD ( COC Control )
Day & Night : ICR
Digital WDR : Yes
Digital NR : Yes
Global Exposure : Yes
Central Exposure : No
AGC : Yes
Auto White Balance : Yes
BLC : Yes
LSC : No
Contrast : Yes
Sharpness : Yes
Smart IR : No
Image Setting : Yes
Defect Correction : Auto
Language : Chinese and English
Angle Adjustment : Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°
Others
Power Supply : DC12V ( ± 15% )
Power Consumption : IR OFF : < 1W; IR ON : < 2.5W
Working Environment : - 30 °C ~ 50 °C, 10 % ~ 90 %(relative humidity)
Dimensions ( mm ) : Ф 108 x 90.4
Weight ( net ) : Approx. 0.39kg
Downloads
Additional Information
Device
Camera
Type
5MP | HD | Analog | IR | Dome

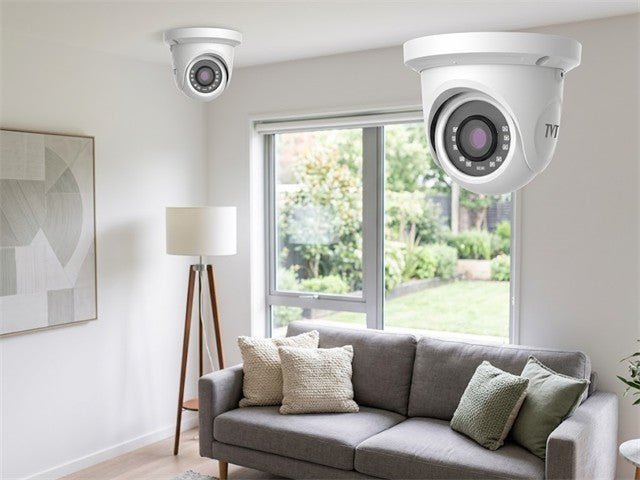

Experience unparalleled security with the TVT TD-7554AS Dome Camera. Featuring 5MP high-resolution imaging, night vision up to 20m, and IP66 weatherproofing, this camera ensures reliable monitoring day and night. Enjoy true color clarity and advanced features like WDR and ICR switching for optimal performance in any environment. Protect your space with the best in surveillance technology!
