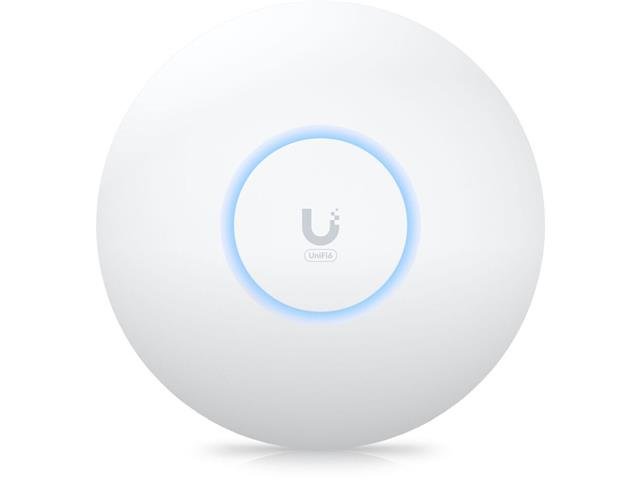

UBQ UAP-U6+

Name: UBQ UAP-U6+ - Communica [Part No: UBQ UAP-U6+]
Brand: Ubiquiti
SKU: UBQ UAP-U6+
Price: 2315 ZAR
Availability: InStock

SKU: UBQ UAP-U6+

BRAND: Ubiquiti

In Stock
R 2,662.25_{(inc VAT)}
R 2,315.00_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: Alarm Accessories

Ubiquiti UniFi6 Plus Dual Band Access Point WiFi 6 AP (2x2 MIMO), 140m² (1,500 ft²) Coverage, Powered Using PoE, Voltage Range:44~57VDC, Max Ppower Consumption:9W, 1xGbE RJ45 Port, WiFi 4/WiFi 5/WiFi 6, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

UniFi6 Plus Dual Band Access Point

Specifications

Mechanical
Dimensions	Ø160 x 33 mm (Ø6.3 x 1.3")
Weight	Without mount: 338 g (0.8 lb) With mount: 413 g (0.9 lb)
Enclosure material	Polycarbonate, aluminum
Mount material	ABS, SGCC steel
Hardware
Networking interface	(1) GbE RJ45 port
Management interface	Ethernet
Power method	PoE
Supported voltage range	44–57V DC
Max. power consumption	9W
Max. TX power 2.4 GHz 5 GHz 6 GHz	23 dBm 23 dBm –
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) –
Throughput rate 2.4 GHz 5 GHz 6 GHz	573.5 Mbps (BW40) 2.4 Gbps (BW160) –
Antenna gain 2.4 GHz 5 GHz 6 GHz	3 dBi 5.4 dBi –
LEDs	White/blue
Button	Factory reset
Mounting	Wall, ceiling (Included)
Ambient operating temperature	-30 to 60° C (-22 to 140° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11a/b/g/n/ac/ax (WiFi 6)
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Zero-wait DFS	Yes* *Supported with upcoming firmware versions.
Concurrent clients	300+
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Software
Management application	UniFi Network: Version 7.3.76 and later

Downloads

Datasheet - UBQ UAP-U6+

Additional Information

Device	Access Point
Type	UniFi6 Plus \| Dual Band
