Ubiquity UniFi Indoor Long Range Dual-Band Access Point, WiFi 7, 2.4GHz Band 2x2 MU-MIMO, 5GHz Band 3x3 MU-MIMO, Up to 160m², Max 2.4GHz@688Mbps, 5GHz@4.3Gbps, PoE Injector Not Included, Max Power:14W, 1x10/100/1000/2500, Voltage:42.5~57V

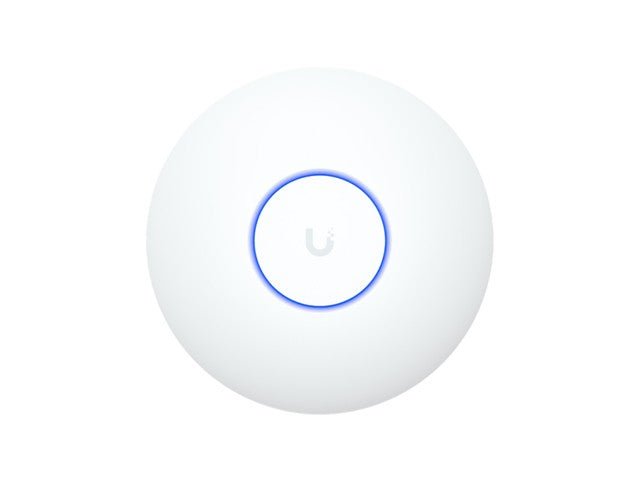

Indoor Long Range Dual-Band Access Point
Overview
The Ubiquiti UniFi U7 Long-Range U7-LR is a high-performance Wi-Fi 7 access point designed to deliver extended coverage and enhanced capacity for enterprise and large-scale residential networks. Featuring 5 spatial streams, it supports 3x3 MU-MIMO on the 5 GHz band and 2x2 MU-MIMO on the 2.4 GHz band, achieving maximum data rates of 4.3 Gbps and 688 Mbps, respectively. With a coverage area of up to 160 m² (1,750 ft²) and support for over 300 concurrent clients, the U7-LR ensures robust and reliable connectivity. Equipped with a 2.5 GbE RJ45 uplink port, it facilitates high-speed wired connections, while Power over Ethernet (PoE) support simplifies installation. Advanced features such as band steering, fast roaming (802.11r), Wi-Fi scheduling, and guest network isolation enhance network efficiency and security.
Specifications
- Dimensions : Ø175.7 x 43 mm (Ø6.9 x 1.7")
- WiFi Standard : WiFi 7
- Spatial Streams : 5
- Coverage Area : 160 m² (1,750 ft²)
- Max. Client Count : 300+
- Uplink : 2.5 GbE
- Mounting : Ceiling, Wall (Plastic Mounting Plate included)
- Power Method : PoE
Performance
- MIMO
- 5 GHz : 3 x 3 (DL/UL MU-MIMO)
- 2.4 GHz : 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 5 GHz : 4.3 Gbps (BW160)
- 2.4 GHz : 688 Mbps (BW40)
- Antenna Gain
- 5 GHz : 6 dBi
- 2.4 GHz : 4 dBi
- Max. TX Power
- 5 GHz : 27 dBm
- 2.4 GHz : 26 dBm
- Supported Data Rates
- 802.11be (WiFi 7) : 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
- 802.11ax (WiFi 6) : 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
- 802.11ac (WiFi 5) : 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
- 802.11n : 6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)
Hardware
- Max. Power Consumption : 14W
- Supported Voltage Range : 42.5—57V DC
- Networking Interface : (1) 2.5 GbE RJ45 port
- Weight : 448 g (15.8 oz)
- Management : Ethernet
- Enclosure Material : Polycarbonate, aluminum alloy
- Mount Material : Polycarbonate, galvanized steel (SGCC)
LEDs
- System : White/Blue
- Channel Bandwidth : HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
- NDAA Compliant : Yes
- Certifications : CE, FCC, IC, Anatel
- Ambient Operating Temperature : -30 to 50° C (-22 to 122° F)
- Ambient Operating Humidity : 5 to 95% noncondensing
Downloads
Additional Information
| Device |
Access Point |
| Type |
Indoor | Long Range | Dual-Band |
Experience lightning-fast connectivity with the UBQ UAP-U7-LR Indoor Long Range Access Point. Designed for large spaces, it offers robust WiFi 7 performance, covering up to 160 m² with speeds of 4.3 Gbps on the 5GHz band. Perfect for homes and businesses, it supports over 300 devices simultaneously, ensuring seamless streaming and browsing. Upgrade your network efficiency and security with advanced features like MU-MIMO and band steering.
