UNI SHERLO 403TXS4

SKU: UNI SHERLO 403TXS4

BRAND: Sherlo

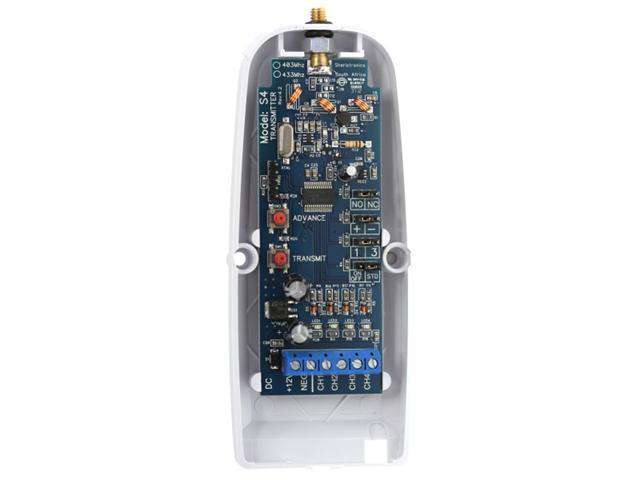

TX4 -S4 Sherlo Stand Alone Transmitter N/O Inputs N/C Inputs 12VDC Code Hopping 1500M (Open Air)

Overview

Features

  • Code-Hopping Encryption
  • 4-Channel telemetry outputs
  • Normally open or Normally closed trigger inputs
  • LED indication when a channel is triggered
  • Crystal frequency stability controlled +/- 100KHz
  • 1 or 3 transmit signals can be selected
  • All inputs are supervised
  • On/Off software functionality

Specification

  • Rage : 1500m (Open Air)
  • Frequency : 1500m (Open Air)
  • Transmit Rage : 1500 (Open Air)
  • Voltage Rage : 9.8V to 16V DC
  • Current on Transmit : 90mA
  • Sleep Mode : 10mA
  • Dimensions (LxBxH) : 187x104x67mm
  • Gross Weight : 235 grams
  • Operating Temp : -3&dgre;C t 65&dgre;C
  • Input Voltage Range : 12-24V
  • Output : 4x

-->
