UNI SHERLO W/L KEYPAD

Name: UNI SHERLO W/L KEYPAD - Communica [Part No: UNI SHERLO W/L KEYPAD]
Brand: Sherlo
SKU: UNI SHERLO W/L KEYPAD
Price: 502.56 ZAR
Availability: OutOfStock

SKU: UNI SHERLO W/L KEYPAD

BRAND: Sherlo

Sold Out
R 577.94_{(inc VAT)}
R 502.56_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: Access Automation

Category: Wireless Keypads

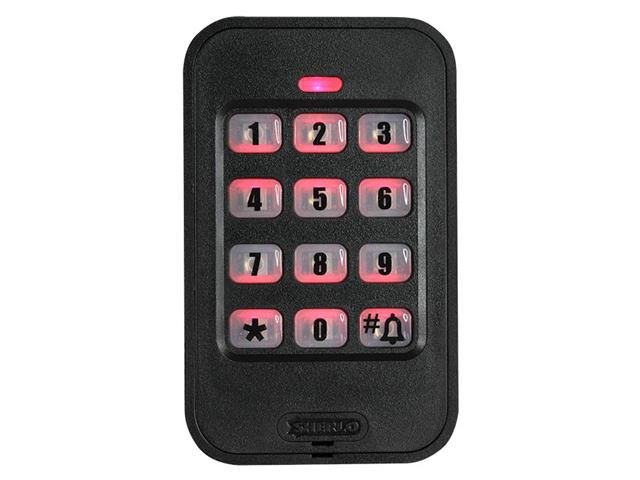

Sherlo 9CH TX Wireless Keypad (PA4686)

TX Wireless Keypad

Overview

The Sherlo Wireless Keypad is designed for Secure access control of buildings, properties, gate/garage entrances, internal doors, striker locks and even arming/disarming alarm panels. The unit can be programmed with up to 9 RF Channels to control different receivers. You can very easily program the keypad on a PC in Notepad so that you don't have to waste time manually programming the keypad. This can then be very easily & reliably saved onto the Keypad using a microSD card. The keypad is battery powered, but has a 12V DC wired input connector.

Features

Wireless Code hopping
1000 unique Pin code from 1-10 digit
Backing up the unit with a microSD card
Wrong code lock out function
Holiday mode
9 Channel RF outputs
1 Door bell RF output
Waterproof housing

APPLICATIONS

Gate access control
Garage door access control
Striker lock access control
Internal door mag-lock access control
Arming / Disarming Alarms
Wireless Doorbell

ORDER CODE

Keypad unit (wireless RF): KEYPAD
AA Alkaline battery 1.5V: AA
Brushed Stainless Steel Rain Shield: RAIN_SHIELD

Specifications

Battery supply voltage: 2 x AA Alkaline batteries (voltage range: 2.4V - 3.3V)
External power input: 10V-14V DC input
Wireless range: 30m indoors
Operating temperature: -3°C to +65°C
Operating humidity: 0 - 90%
Outputs: 9 Channels + 1 Doorbell output
Housing material: ABS Black
Rating: IP55
Battery life: 2-3 years dependant on Usage
Usage life: 60 000 activations
Code length: 1 - 10 digits
Memory capacity: 1000 unique codes

Downloads

User Manual - UNI SHERLO W/L KEYPAD

Additional Information

Device	Keypad
Type	TX \| Wireless
