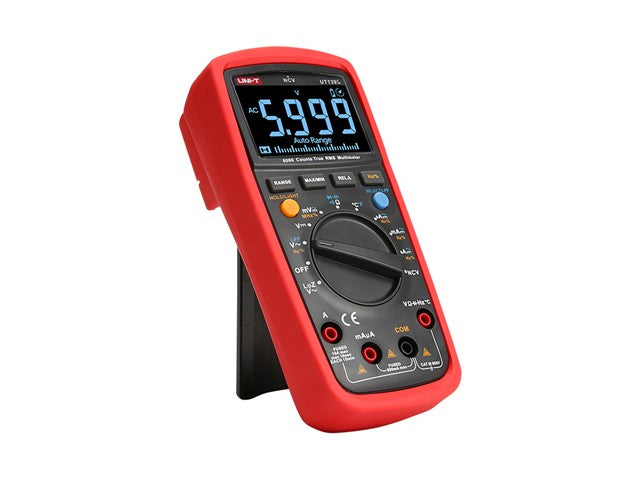

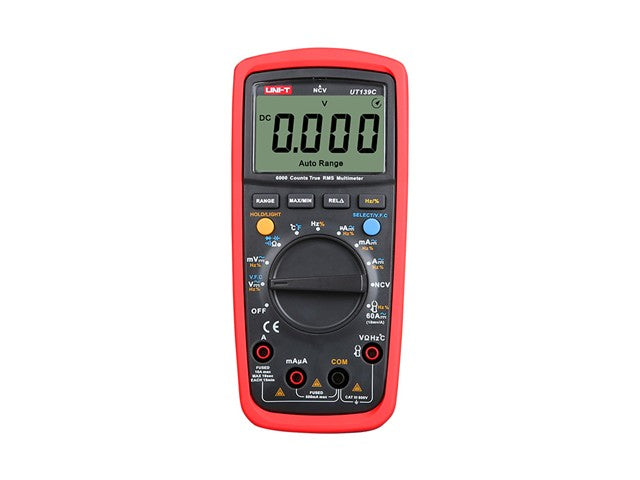

Digital Multimeter 600V AC/DC 10A AC/DC, Resistor :60m, Temperature-400~1000C, Capacitance:99.99mF, Frequency :10Hz-10MHz, Display Count 6000, Auto Range,True RMS, Max/Min, Continuity Buzzer, Diode, Data Hold,l Ow Battery Indication, Auto Power Off, NCV,
Overview
Features
- Display Count : 6000
- Auto Range : Yes
- Manual Range : Yes
- True RMS : Yes
- Bandwidth (Hz) : 45Hz ~ 1kHz
- V.F.C : Yes
- Duty Cycle : 0.1% ~ 99.9% : Yes
- Diode : Around 3V
- NCV : Yes
- Auto Power Off : Around 15 minutes : Yes
- Continuity Buzzer : Yes
- Low Battery Indication : ≤2.5V : Yes
- Data Hold : Yes
- Relative Mode : Yes
- MAX/MIN : Yes
- LCD Backlight : Yes
- Input Protection : 600Vrms : Yes
- Input Impedance for DCV : 1GΩ Max : Yes
General Characteristics
- Power : AA1.5*2
- LCD Size : 58mm x 36mm
- Product Colour : Red and grey
- Product Net Weight : 370g
- Product Size : 175mm x 81mm x 48.5mm
- Standard Accessories : Battery, test leads, temperature probe
- Standard Individual Packing : Gift box, English manual
Specification
Range Best Accuracy
DC Voltage (V) : 60mV/600mV/6V/60V/600V : ±(0.5%+2) AC Voltage (V) : 60mV/600mV/6V/60V/600V : ±(0.8%+3) DC Current (A) : 600μA/6000μA/60mA/600mA/6A/10A : ±(0.7%+2) AC Current (A) : 600μA/6000μA/60mA/600mA/6A/10A : ±(1%+3) Resistance (Ω) : 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ : ±(0.8%+2)
Capacitance (F)
- 9.999nF/99.99nF/999.9nF/9.999μ
- F/99.99μF/999.9μF/9.999mF/99.99mF
- Best Accuracy : ±(4.0%+5)
- Frequency (Hz) : 10Hz-10MHz : ±(0.1%+4)
- Temperature (°C) : -40 °C~1000°C : ±(1.0%+3)
- Temperature (°F) : -40°F~1832°F : ±(1.5%+5)
