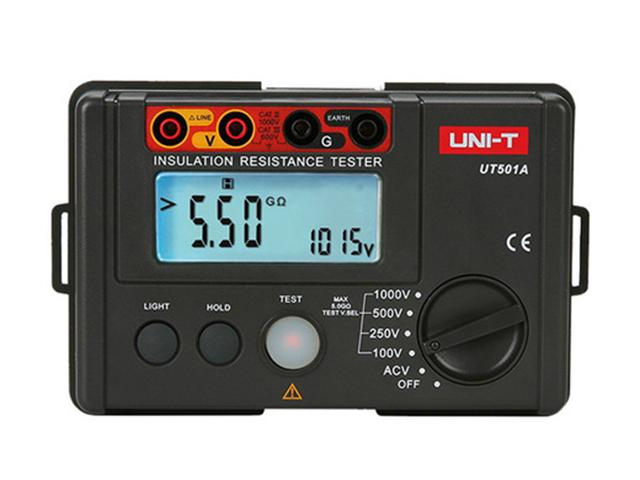

UNI-T UT501A - Insulation Testers/Megohmmeters - 6935750550113

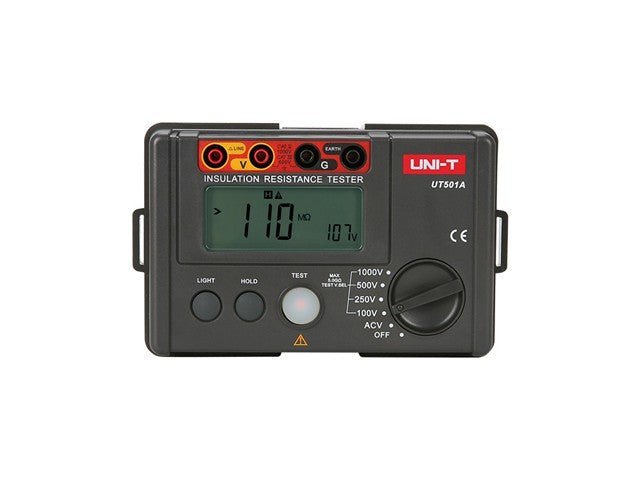

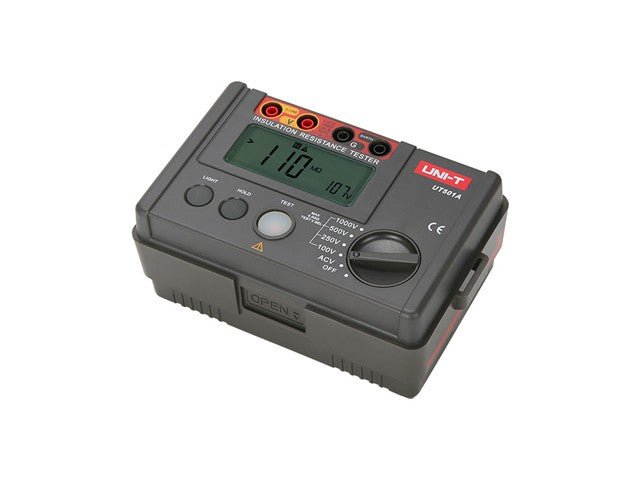

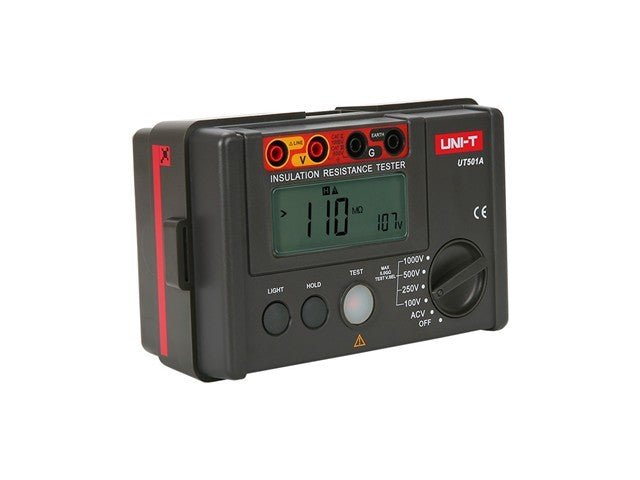

UNI-T UT501A

Name: UNI-T UT501A - Communica [Part No: UNI-T UT501A]
Brand: UNI-T
SKU: UNI-T UT501A
Price: 2500 ZAR
Availability: InStock

SKU: UNI-T UT501A

BRAND: UNI-T

R 2,875.00_{(inc VAT)}
R 2,500.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Test & Measurement

Type: Insulation Testers/Megohmmeters

Category: Insulation Tester

Insulation Resistance Tester, Test Voltages 100/250V/500V/1000V, 30~750VAC, Insulation Resistance:5.5GΩ, Auto Range, Low Battery Indication, LCD Backlight, Overload Indication, Alarm Indication, Buzzer, Auto Discharge, High Vltge Indication, Display Count

Insulation Resistance Tester

Features

2000 count LCD display, overload indication, backlight
AC voltage measurement, auto power oﬀ
Auto discharge
Continuous low resistance measurement
Continuous measurements mode, red warning light and buzzer function
PI and DAR measurement, auto resistivity calculation
Low resistance returning to zero function to improve accuracy

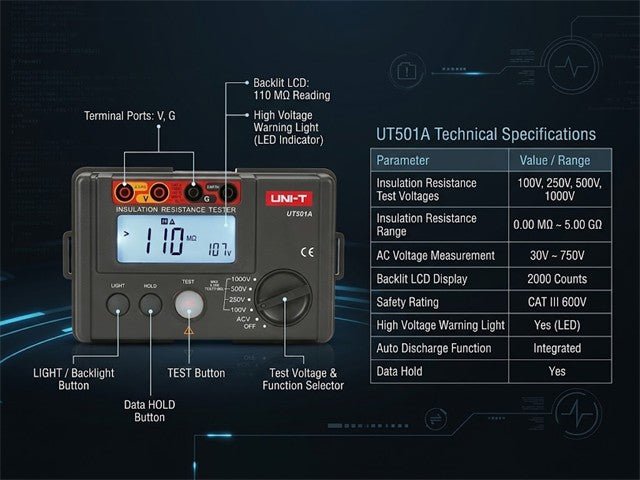

Specifications

	Range		UT501A
Insulation resistance (Ω)	Test voltages	100V/250V/500V/1000V	0%~10%
		250V/500V/1000V
		500V/1000V/2500V
	100V	0MΩ~100MΩ	±(3%+5)
	250V	0MΩ~99.9MΩ	±(3%+5)
		100MΩ~5GΩ	±(5%+5)
	500V	0MΩ~99.9MΩ	±(3%+5)
		100MΩ~5GΩ	±(5%+5)
	1000V	0MΩ~99.9MΩ	±(3%+5)
		100MΩ~5GΩ	±(5%+5)
	2500V	0MΩ~99.9MΩ
		100MΩ~9.9GΩ
		10GΩ~20GΩ
	Load current	50V (R=50kΩ) 1mA	0%~10%
		100V (R=100kΩ) 1mA	0%~10%
		250V (R=250kΩ) 1mA	0%~10%
		500V (R=500kΩ) 1mA	0%~10%
		1000V (R=1MΩ) 1mA	0%~10%
		2500V (R=1MΩ) 1mA
Short-circuit current			<2mA
Low resistance (Ω)	0.01Ω~200Ω (about 5.0V/>200mA）
AC voltage (V)	30V~750V		±(2%+3)
	30V~600V
Features
Display count			2000
DAR	60s/15s and 60s/30s
PI
Auto range/Low battery indication			√
LCD backlight/Light alarm			√
Buzzer alarm/High voltage indication			√
Over load indication/Auto discharge			√
Test voltage secondary display			√
10MΩ internal resistance test			√
Meets IEC 61557	61557-1:2007; 61557-2:2007; 61557-4:2007 (UT502A only)
General Characteristics
Power	1.5V battery (LR6) x 6
Display	70.6mm x 34mm
Product color	Red and grey
Product net weight	500g
Product size	150mm x 100mm x 71mm
Standard accessories	Batteries, test leads, alligator clips, gallus, test probes (UT502A)
Standard individual packing	Gift box, carrying bag, English manual
Standard quantity per carton	20pcs
Standard carton measurement	500mm x 380mm x 330mm (0.063 CBM per standard carton)
Standard carton gross weight	UT501A: 17.7kg; UT501B: 20.9kg; UT502A: 18.9kg

Downloads

Datasheet - UNI-T UT501A

Additional Information

Device	Tester
Type	Insulation \| Resistance

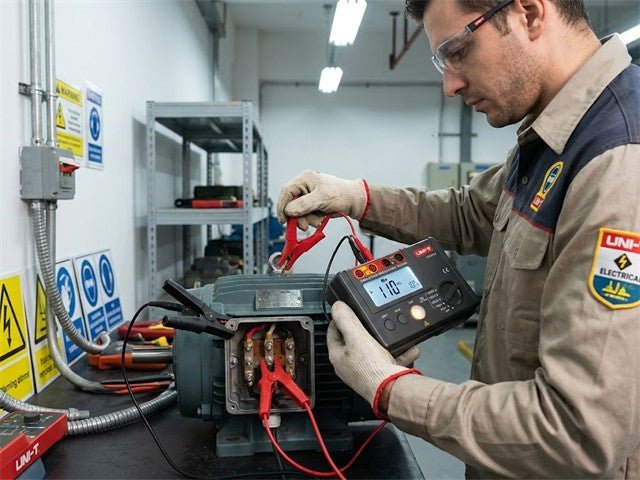

Ensure electrical safety with the UNI-T UT501A Insulation Resistance Tester. Capable of testing voltages up to 1000V and offering a high insulation resistance of 5.5GΩ, this reliable tool features an easy-to-read LCD, auto range, and low battery indication. Perfect for professionals, it guarantees accurate results with built-in alarms and a durable carrying bag. Invest in peace of mind and reliability with the UNI-T UT501A.
