Inductance Capacitance Meter Res:20MΩ,CAP:600uF, Inductance:2mH/20mH/200mH/2H/20H, Display Count 1999, Manual Range, Diode, Transistor, Buzzer, Low Batt Indication
Inductance Capacitance Meter
Overview
UT600 series RCL meter is a kind of 3.5-bithandheld digital meter with stable performance, safety, reliability, highaccuracy and manual range. It can be used to measure the magnification times β of audion, diode forward voltage drop and circuit continuity. UT601has wide capacitance measurement range from 0.1pF～20mF and high accuracy. UT602 can hold data. UT 600 series is applicable to testing resistance, capacitance and inductance of electronic laboratory, production line, maintenance point and teaching. It is the ideal tool of maintaining for many users
Features
- Display Count : 1999
- Manual Range : Yes
- Diode : Yes
- Transistor : Yes
- Continuity Buzzer : Yes
- Low Battery Indication : Yes
- General Characteristic
- Power : 9V Battery (6F22)
- LCD Size : 61mm X 32 mm
- Product Color : Red and Grey
- Product Net Weight : 312g
- Product Size : 172mm X 83mm X38 mm
- Standard Accessories : Battery, Test Clip,Holster
- Standard Individual Packing : Gift Box, English Manual
- Standard Quantity Per Carton : 40 PCs
- Standard Carton Measurement : 598mm X 418mm X 340mm (0.085 CBM Per Standard Carton)
- Standard Carton Gross Weight : 21Kg

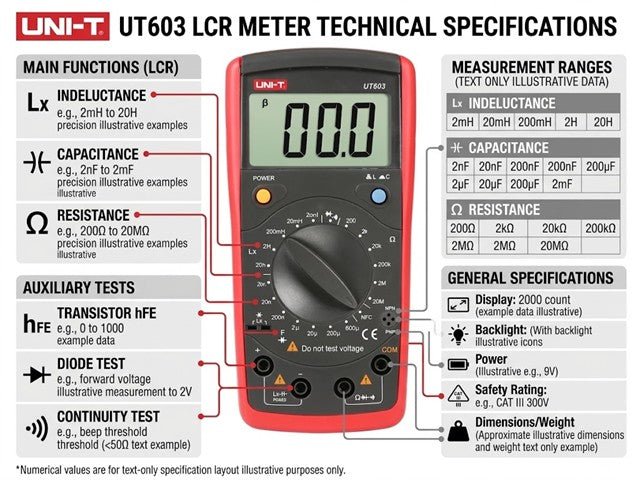

Specifications
Range : Range : Best Accuracy
- Resistance (Ω) : 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ : ±(0.8%+1)
- Capacitance (C) : 2nF/20nF/200nF/2uF/20uF/200uF/600uF : ±(1%+5)
- Inductance (H) : 2mH/20mH/200mH/2H/20H : ±(2%+8)
Additional Information
| Device |
Meter |
| Type |
Inductance | Capacitance |
Discover the UNI-T UT603 Inductance Capacitance Meter, your reliable partner for precise measurements of resistance, capacitance, and inductance. With a wide measurement range and high accuracy, this handheld meter simplifies electronic testing for labs and maintenance tasks. Its user-friendly features, including a continuity buzzer and low battery indication, ensure you stay efficient and effective. Elevate your toolkit with the UNI-T UT603 for professional-grade performance.
