Processor CPU
|
Rockchip RK3568
ARM quad-core 64-bit processor,clocked up to 2.0GHz
|
|
Graphics processor GPU
|
ARM G52 2EE GPU
Supports,OpenGLES1.1/2.0/3.2,OpenCL2.0,Vulkan1.1,
embedded high-performance2D acceleration hardware
|
|
Neural Network Processing NPU
|
Built-in,neural,network,process or NPU,1.0TOPS@INT8 functionality;
SupportCaffe/Mxnet/TensorFlow/TFLite/ONNX/Darknet ect.
|
|
Operating system
|
Linux Ubuntu 20.04
|
|
MemoryDDR
|
DDR4 4GB
|
|
Storage
|
eMMC32GB
|
|

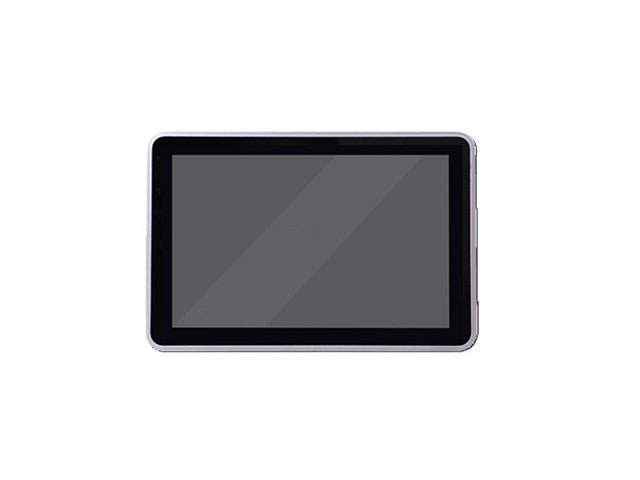

Touch screen
|
10.1 inch/800*1280 resolution/capacitive
|
|
Network
|
Support 2*Ethernet 10/100 Mbps, support Ethernet
|
|
Support 2.4GHz Wi-Fi 802.11b/g/n
|
|
Support 4G functionality
(default factory 4G,WiFi version not supported)
|
|
GPS
|
Built-in GPS/BD module,
sensitivity:-162dBm;Receiving frequency:1575.42MHz
Satellite channel:20 channel
Positioning accuracy: <10m
(OnlyGL version support )
|
|
SIM
|
Nano SIM card holder for cellular networking
|
|
Display interface
|
1* HDMI OUT2.0；Support 4K60fps output
|
|
Audio
|
1*Headset output
|
|
RTC
|
Built-in real-time clock power supply battery,
support timing switch machine
|
|
USB
|
1* USB3.0 HOST
1 *USB3.0 OTG (compatible upgrade, default HOST function)
|
|
Key
|
1*Upgrade key
|
|
Serial port
|
2*RS232 ,2*RS485
|
|
Mains input
|
DC12V/5.5mm Core 2.1 mm DC Head 2A- 5A
(Surge voltage＜18V required,striated Wave voltage＜100mV), support power-on self-start or power-on press the power button to start
|
|
Operating temperature
|
0 -50°C
|
|
Storage temperature
|
-20 - 80 °C
|
|
Operating humidity
|
10%-80%
|
|
Size
|
160mm*85mm*28mm
|
|
Multimedia
|
Support 4K 60fps H.265/H.264 video decoding
Support 1080P 100fps H.265/H.264 video encoding
Support 8M ISP, support HDR
|
|
Language support
|
English by default, downloadable in other languages
|
|
Input method
|
Standard Android keyboard with optional third-party input methods (Chinese, Korean, Japanese, etc.)
|
