V23154-N0715-F104

Name: V23154-N0715-F104 - Communica [Part No: V23154-N0715-F104]
Brand: TE Connectivity
SKU: V23154-N0715-F104
Price: 165 ZAR
Availability: InStock

SKU: V23154-N0715-F104

BRAND: TE Connectivity

R 189.75_{(inc VAT)}
R 165.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Electromechanical

Type: Relays

Category: Low Signal PCB Relays

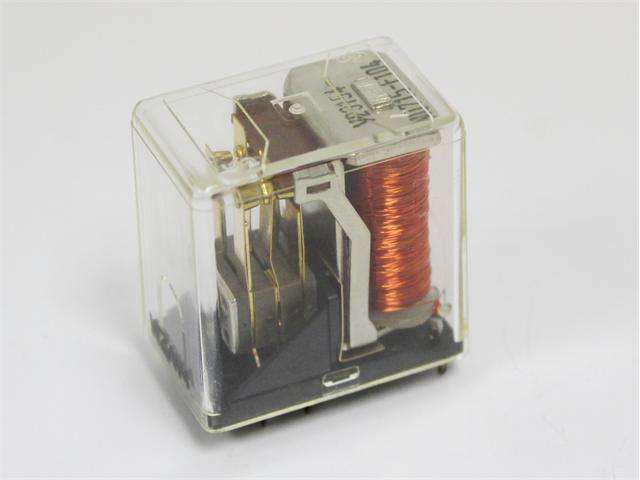

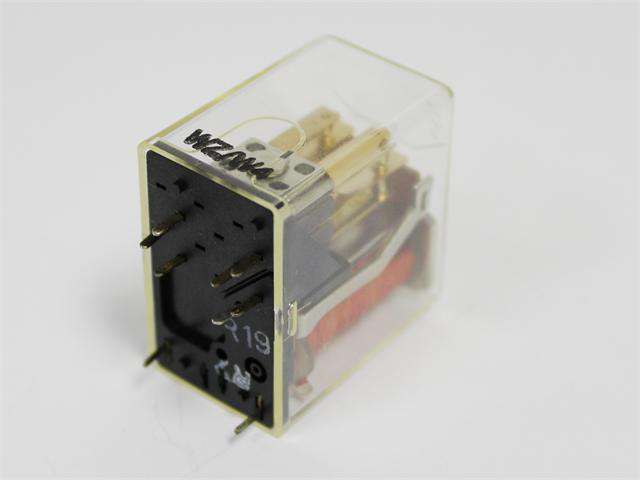

Cradle Relay • Form 2C • VCoil= 9V DC • IMax Switching= 5A • RCoil= 110Ω • PCB

Overview

Features

Multi purpose relay
Highly reliable
Great variety of contact arrangements and materials to meet specific applications
Contacts for signal loads and currents up to 5 A
DC coil, operating voltage 1.5VDC to 125VDC; AC, latching and non-latching coils on request
Sockets for easy and quick mounting of relays

Specification

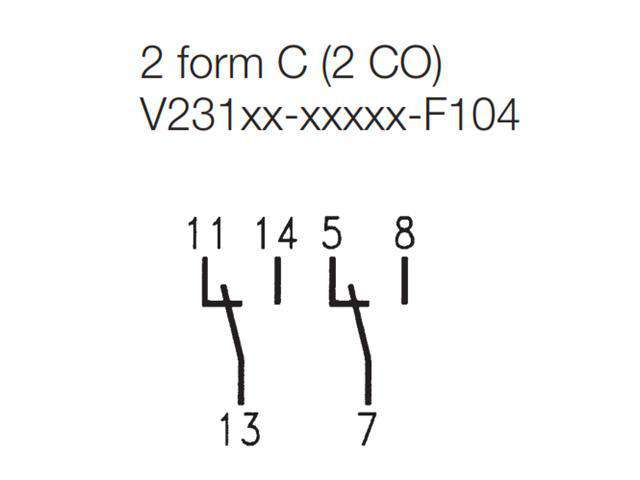

Contact Form	Form 2C
Termination	PCB
Coil Rated Voltage	9V
AC/DC Voltage	DC
Max. Switching Current	5A
Coil Power	736mW Power
Coil Resistance	110Ω
Contact Material	Silver, Gold-flashed

Downloads

Datasheet Download

Upgrade your projects with the V23154-N0715-F104 Cradle Relay, designed for reliability and versatility. With a 9V DC coil and a maximum switching current of 5A, it’s perfect for various applications. Enjoy easy PCB mounting and a selection of contact arrangements to suit your needs.
