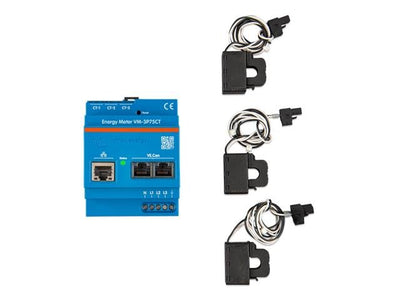

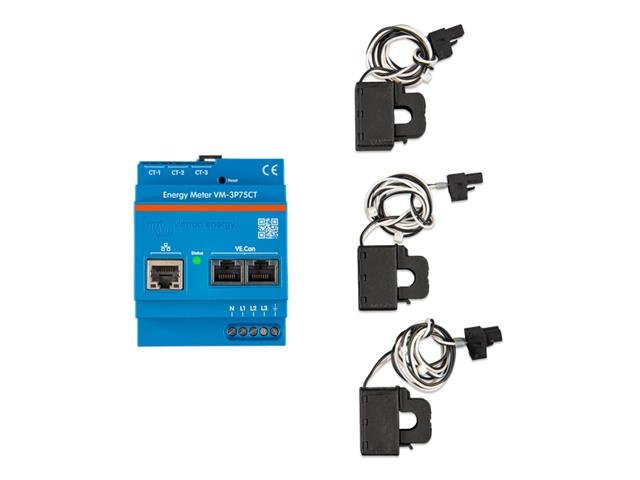

Victron DIN Rail Energy Meter Three Phase, I/P Voltage L-N @ 85~265VAC, I/P Voltage L-L @ 150~460VAC 50/60Hz, Current Input:75A VIA Current Transformers (CT) Included, 2xRJ45 Connectors (VE.CAN Terminators Included), IP20

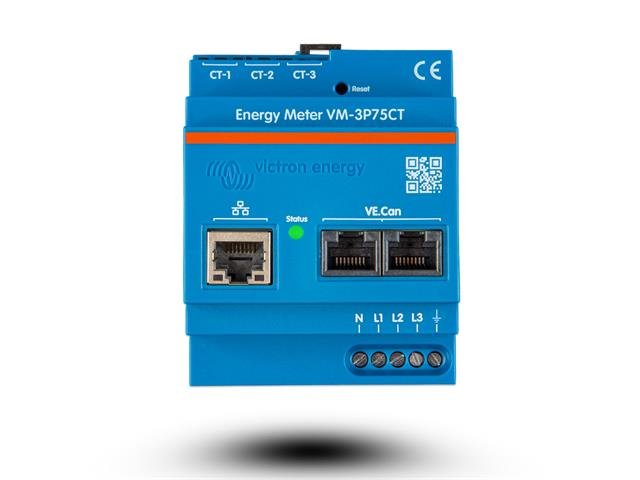

DIN Rail Energy Meter Three Phase
Specifications
VOLTAGE INPUTS
- Voltage connection : Direct
- Input voltage range L-N : 85 to 265VAC
- Input voltage range L-L : 150 to 460VAC
- Frequency : 50/60Hz
CURRENT INPUTS
- Current connection : Via current transformers (included - wire length 640mm)
- Rated current : 75A
COMMUNICATION
- VE.Can communication port : Two RJ45 connectors (VE.Can terminators included)
- Ethernet communication port : One RJ45 connector, Modbus UDP
- Refresh rate : 100ms
POWER SUPPLY
- Type : Self-power supply via L1-N
- Consumption : 1.45W / 3.1VA
- Frequency : 50/60Hz
ENCLOSURE
- Material & Colour : Polycarbonate, blue (RAL 5012)
- Voltage connection : Screw terminals 0.25 – 1.5mm2 (24 – 16 AWG)
- Current transformer connection : Pluggable screw terminals (included)
- Protection category : IP20
- Weight : 370g (including packaging)
- Dimensions (h x w x d) : 90 x 71 x 59mm (3.5 x 2.8 x 2.3in)
ENVIRONMENTAL
- Indoor/outdoor usage : Indoor only
- Operating temperature From : -10 to +55 °C
- Storage temperature From : -20 to +70 °C
- Relative humidity : < 90 % non-condensing
- Altitude : 2000m (6562ft)
- Mains supply voltage fluctuations : ±0.1Vin
- Overvoltage category : Cat. III
- Pollution degree : 2
STANDARDS
Downloads
Additional Information
| Device |
Energy Meter |
| Type |
DIN Rail | Three Phase |
