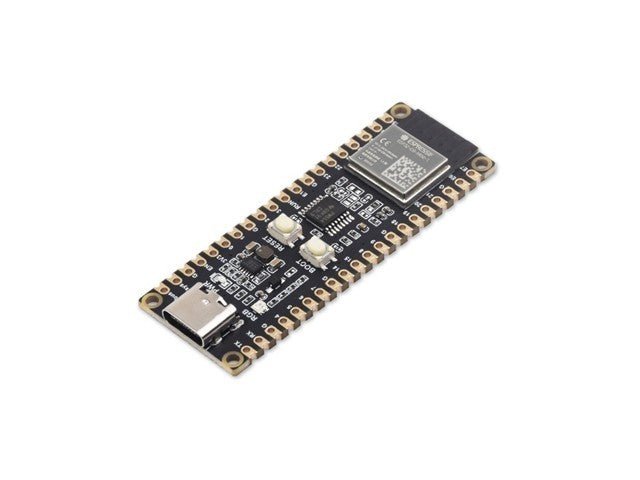

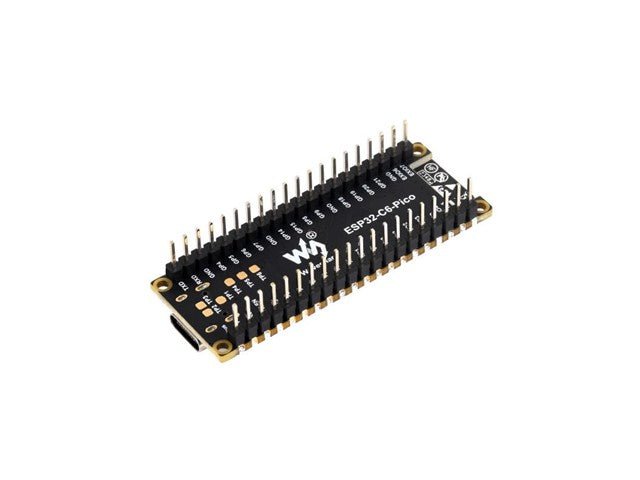

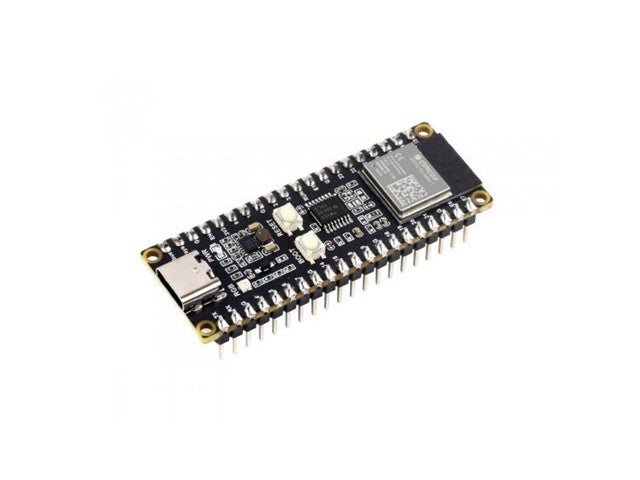

The ESP32-C6-Pico is an entry-level RISC-V microcontroller development board integrating WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread). It is compatible in size and interface with most of the Raspberry Pi Pico HATs. Easy to expand, with multiple peripheral interfaces. Suitable for smart home, industrial automation, healthcare, consumer electronics and other applications.
Adopts ESP32-C6-MINI-1 as the main chip, which is equipped with a RISC-V 32-bit single-core processor with 160MHz running frequency, built-in 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and 4MB flash; Onboard MP28164 high efficiency DC-DC buck-boost chip with load current up to 2A, ensuring the safety of the product.
| Items | Function name | Parameters | Functionality |
| Initialize TCA9554PWR | TCA9554PWR_Init | uint8_t PinState | Initialize all TCA9554PWR pins to PinState mode |
|---|---|---|---|
| Resister | Read_REG | uint8_t REG | Read the value in the REG register of the TCA9554PWR |
| Write_REG | uint8_t REG,uint8_t Data | Write data to the REG register of the TCA9554PWR | |
| Initialize EXIO mode | Mode_EXIO | uint8_t Pin,uint8_t State | Setting the mode of the Pin of the TCA9554PWR |
| Mode_EXIOS | uint8_t PinState | Setting the mode of all TCA9554PWR pins | |
| Read EXIO level | Read_EXIO | uint8_t Pin | Read the input level of the Pin of the TCA9554PWR |
| Read_EXIOS | void | Setting the input level of all TCA9554PWR pins | |
| Set EXIO output level | Set_EXIO | uint8_t Pin,uint8_t State | Set the output level of the Pin of the TCA9554PWR |
| Set_EXIOS | int8_t PinState | Setting the output level of all TCA9554PWR pins | |
| Toggle EXIO level | Set_Toggle | uint8_t Pin | Toggles the output level of the Pin of the TCA9554PWR |
| Device | Development Board |
| Type | WiFi 6 | ESP32-C6 | Microcontroller |
