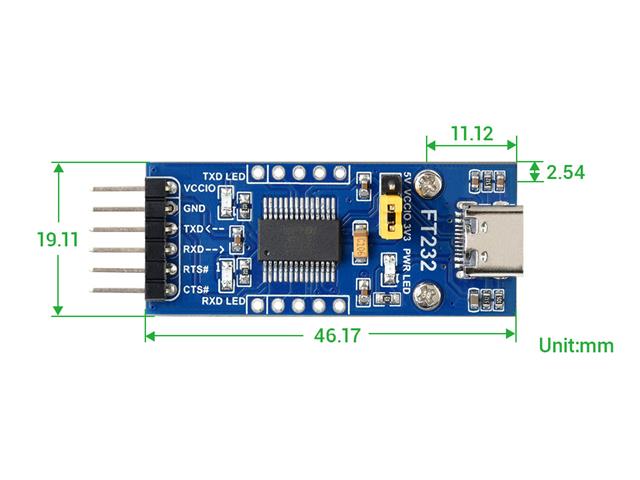

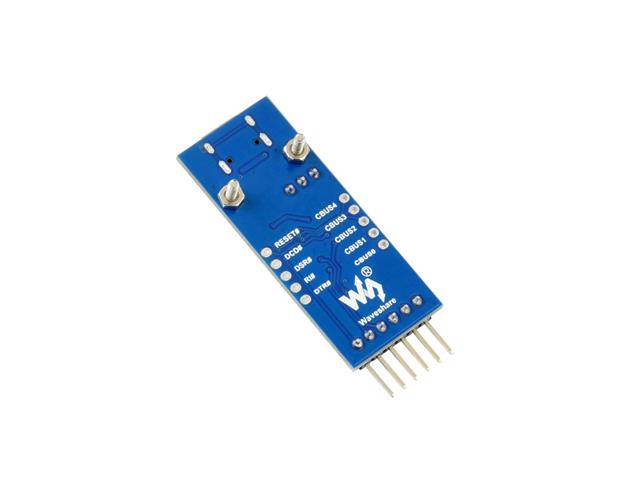

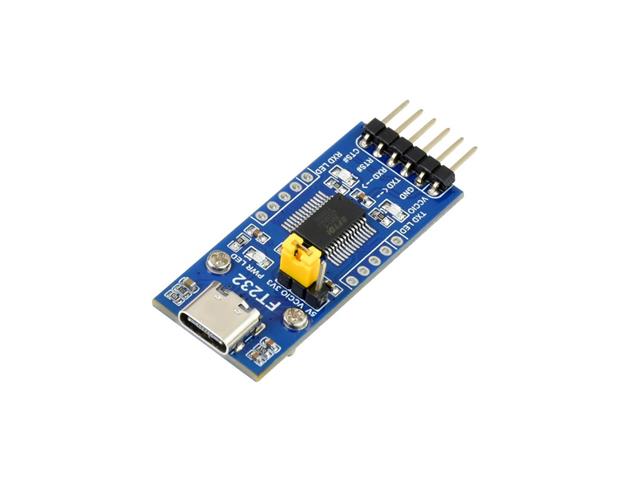

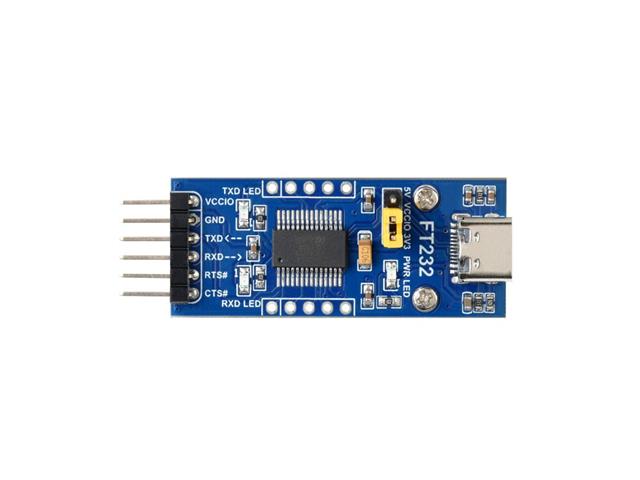

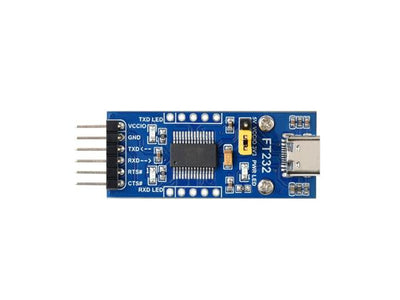

WVS FT232RL USB TO SERIAL BOARD

SKU: WVS FT232RL USB TO SERIAL BOARD

BRAND: Waveshare


FT232 USB to UART (TTL) Communication Module, USB-C Connector. Compatible with 3.3V/5V Logic Level. Supports Mac OS, Linux, Android, Wince, Windows 7/8/8.1/10/11...

FT232 USB to UART (TTL) Communication Module

Features

  • Original FT232RL onboard
  • Supports Mac OS, Linux, Android, WinCE, Windows 7/8/8.1/10/11...
  • 3x VCCIO power mode via jumper setting:
    • VCCIO - 5V: 5V output
    • VCCIO - 3.3V: 3.3V output
    • open the jumper: powered from target board (3.3V-5V)
  • 3x LED indicators: TXD, RXD, PWR
  • Pins accessible on pinheaders: TXD, RXD, RTS#, CTS#
  • Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board)

Additional Information

Device Module
Type FT232 USB to UART (TTL) | Communication
