Overview

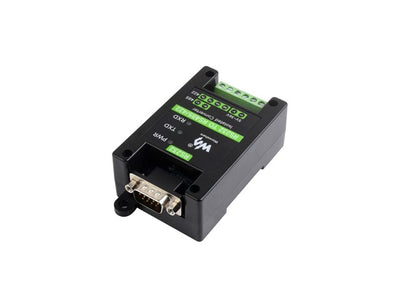

RS232 TO RS485/422, an industrial grade RS232 to RS485/422 isolated converter, boasts industrial grade rail-mount case design and protection circuits such as the built-in power isolation, ADI magnetical isolation, and TVS diode. It is easy to operate RS232 TO RS485/422 as it features zero-delay automatic transmission conversion, faster communication speed, stability, reliability, and safety, which is applicable for scenarios with high communication requirements.
Features
- Onboard SP3232EEN and SP485EEN chips. Fast communication, stable and reliable, better compatibility
- Stable transmission at the rate of 300~921600bps
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
- Onboard 15KV ESD isolation protection and 600W lightningproof & anti-surge protection
- Onboard 120R terminal resistor on the RS485/RS422 interface, disable by default, configurable by jumper

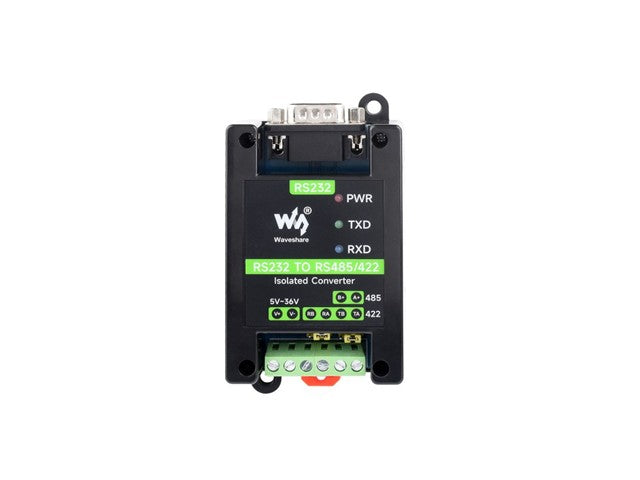

- Onboard power supply screw terminal, allows 5V~36V DC wide range input

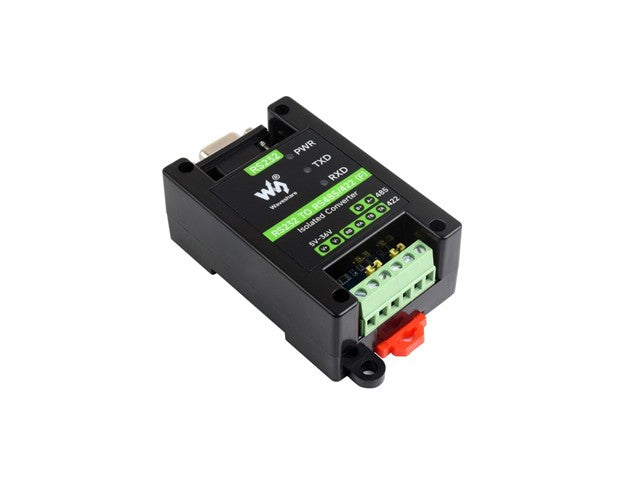

- 3 LEDs for indicating the power and transceiver status

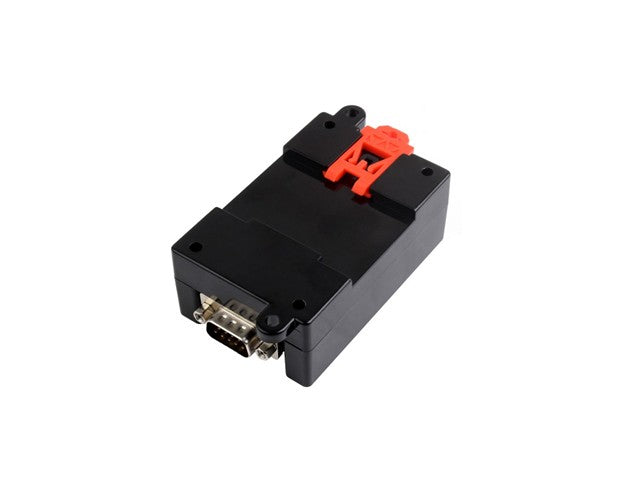

- Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective
Specifications
| PRODUCT TYPE |
Active digital isolated RS232 to RS485/422 serial converter |
| POWER SUPPLY INTERFACE |
Power supply |
5~36V DC |
| Protection |
Anti-reverse |
| Baud rate |
300 ~ 921600bps (300~115200bps is recommended for long-distance reliable communication) |
| Device port |
RS232, RS485/422 |
| RS232 |
Connector |

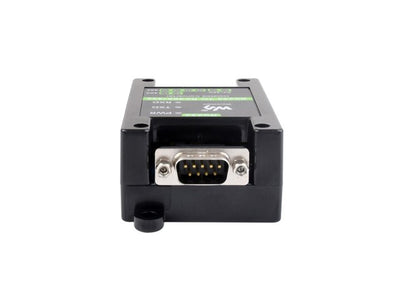

DB9 male/female |
| Transmission distance |
about 15m |
| Transmission mode |
point-to-point |
| RS485/422 |
Connector |
Screw terminal |
| Direction control |
Hardware automatic control |
| Protection |
600W lightningproof and surge-suppress, 15KV ESD protection |
| Terminal resistor |
120R, enabled/disabled via switch |
| Transmission distance |
About 1.2km |
| Transmission mode |
Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) |
| Appearance |
Enclosure |
Rail-mount ABS case, suitable for 35mm DIN rail |
| Dimensions |
81.9 × 54.0 × 32.0mm |
