XY-LPIR3931

• Microprocessor Controlled
• Anti White Light Special Filter Lens (10000 Lux)
• Waterproof, Suitable for Outdoor Environment
• Fully sealed bug immunity
• Pet (<20Kg) Immunity
• Pulse Count Selectable
• Wide-angle lens and curtain lens option
• Dual Sensor Detection to avoid False Alarms
• LED ON & OFF jumper Selectable
• Pulse Count jumper Selectable
• Auto Temperature Compensation reduces False Alarms

• Operating Voltage : 9~16VDC
• Supply Current : 28mA 12VDC
• Operating Temperature :-10°C ~ +50°C
• Sensor Type : Dual Low noise Pyroelectric IR Sensor
• Mounting : Wall Mounting
• Installation Height : aprox 2.2m

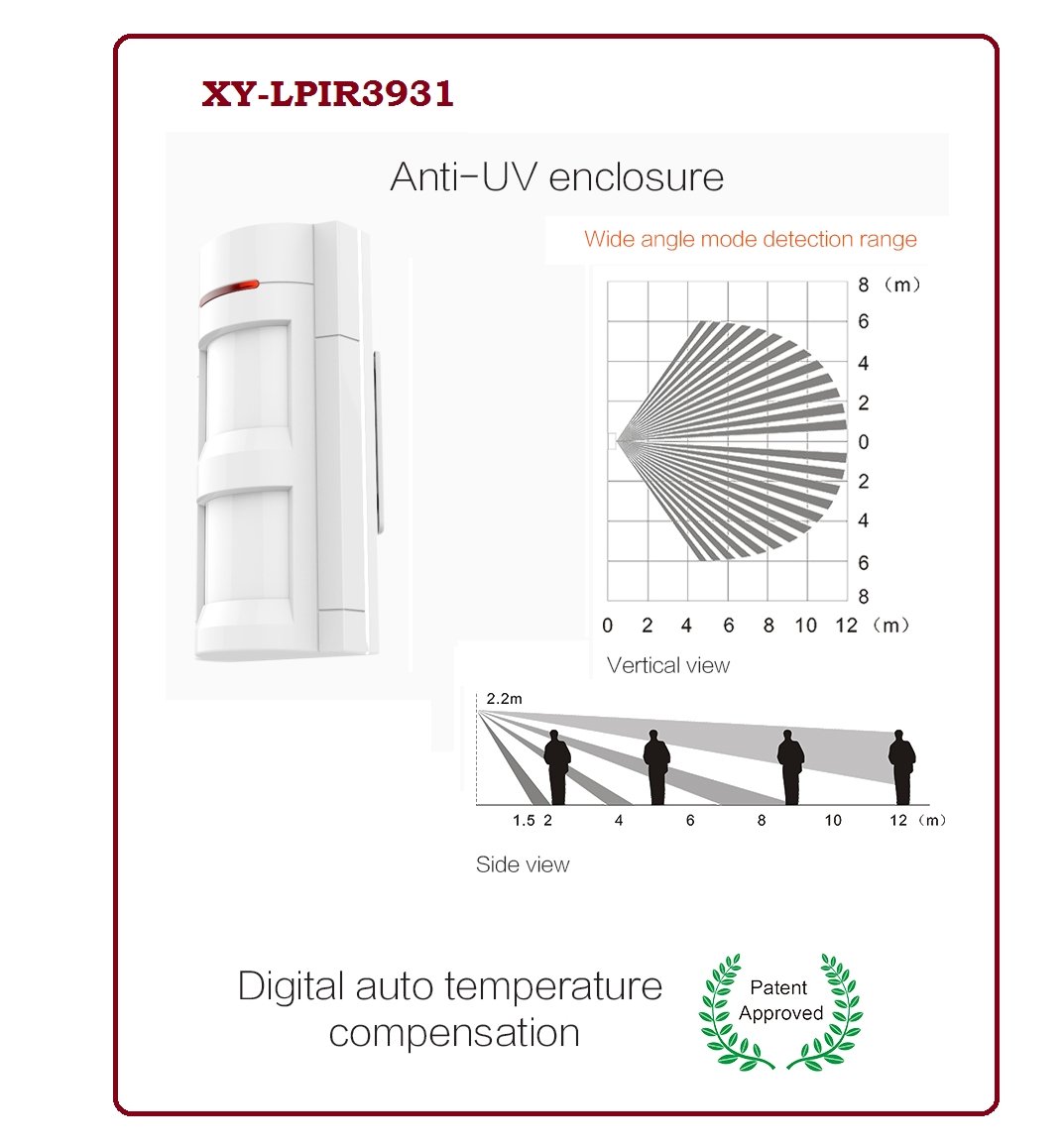

• Detecting Angle: wide-angle lens - 110°, Curtain lens - 15°
• Detecting Range : wide-angle lens - 12m, Curtain lens - 8m
• Alarm Output : N.O./N.C. 28VDC 80mA max
• Anti Tamper Switch : N.C.28VDC 100mA max
• Size : 150mm x 73mm x 48mm
