ZKT F22

SKU: ZKT F22

BRAND: ZKTeco

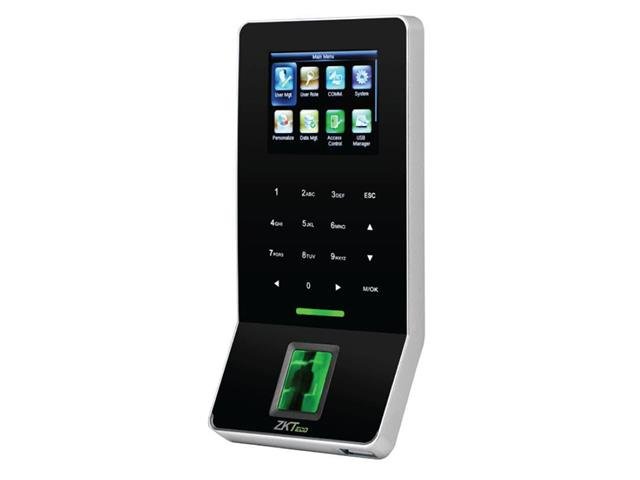

ZK Teco F22 Black Silkid Fingerprint Reader Indoor 2.4″ TFT LCD Colour, 3000 Fingerprints, 5000 Cards, TCP/IP, RS485 & USB Host, 12VDC 3A, IP54

Black Silkid Fingerprint Reader

Overview

F22 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality infrared detection fingerprint sensor.

F22 provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi are also available that the device can be used in different networks.

Features

  • 2.4-inch TFT color screen and Touch keys
  • Ultra thin and elegant design
  • Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, door sensor, exit button, alarm
  • Standard Wi-Fi
  • Network interface by TCP/IP or RS485
  • Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
  • Multiple Verification Modes: Multi- verification methods (card is optional) providing user various choices

Specifications

  • Display : 2.4-inch TFT LCD Color Screen
  • Fingerprint Capacity : 3000
  • Card Capacity : 5000(Optional) ID or Mifare card
  • Transaction Capacity : 30,000
  • Sensor : BioID Sensor/ SilkID Sensor (optional)
  • Algorithm Version : ZKFinger VX10.0
  • Communication : RS232/485, TCP/IP, USB-host,Wi-Fi
  • Access Control Interface : 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
  • Wiegand Signal : Input, Output
  • Aux. Input : 1ea for linkage function
  • Functions : DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, Printer(Optional), ADMS(Optional)
  • Power Supply : 12V DC,3A
  • Operating Temperature : 0 °C- 45 °C
  • Operating Humidity : 20%-80%
  • Dimension(LxWxH) : 158.5x78.0x19.4mm
  • SDK and software : Standalone SDK,ZKAccess3.5 software

Downloads

Additional Information

Device Fingerprint Reader
Type Black | Silkid
