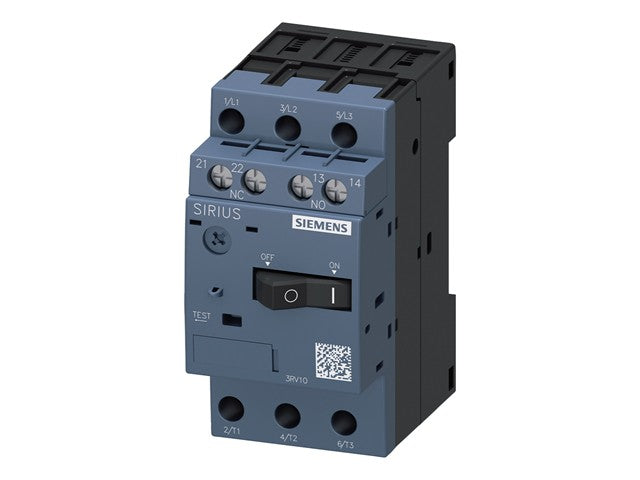

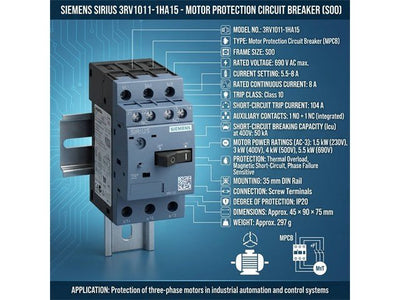

Circuit Breaker Size S00 For Motor Protection, CLASS 10 A-release 5.5...8 A N-Release 104 A 1 NO+1 NC Transverse Screw Terminal Standard Switching Capacity
Circuit Breaker Size S00

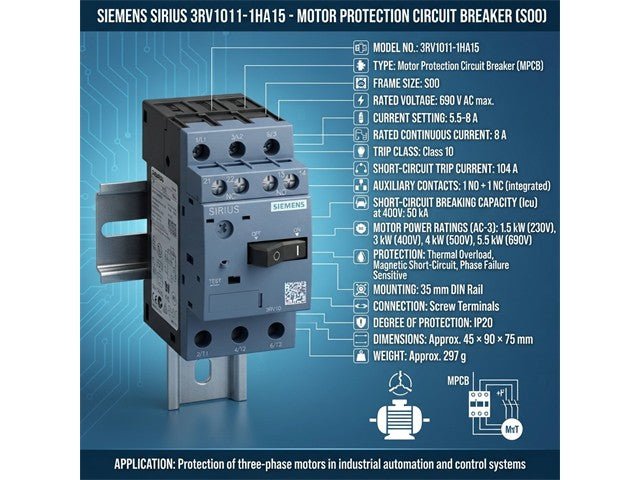

Specifications
Product Type: Motor Protection Circuit Breaker
Model Number: 3RV1011-1HA15
Frame Size: S00
Number of Poles: 3
Rated Operating Voltage: Up to 690 V AC
Current Setting Range: 5.5–8 A
Rated Continuous Current: 8 A
Trip Class: Class 10
Short-Circuit Trip Current: 104 A
Motor Power Rating at 230 V AC: 1.5 kW
Motor Power Rating at 400 V AC: 3 kW
Motor Power Rating at 500 V AC: 4 kW
Motor Power Rating at 690 V AC: 5.5 kW

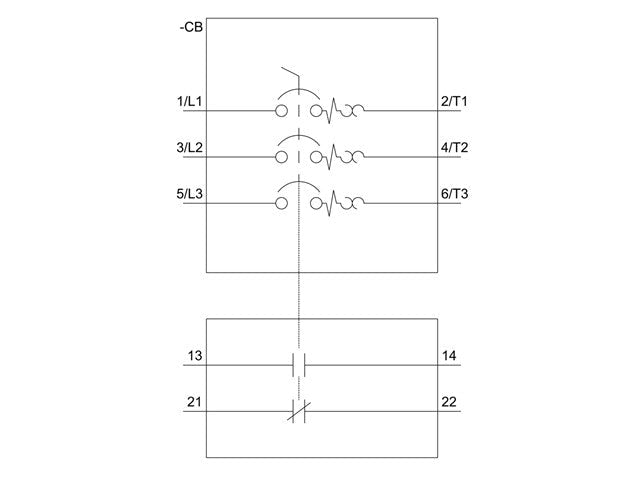

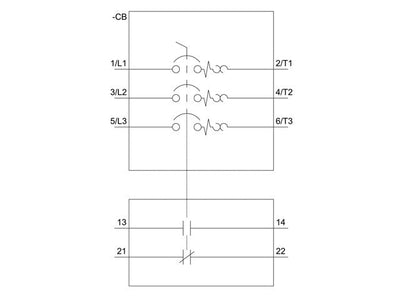

Auxiliary Contacts: 1 NO + 1 NC
Overload Protection: Thermal
Short-Circuit Protection: Magnetic
Phase Failure Sensitivity: Yes
Rated Short-Circuit Breaking Capacity (Icu) at 400 V AC: 50 kA
Connection Type: Screw terminals
Mounting Type: 35 mm DIN rail
Degree of Protection: IP20

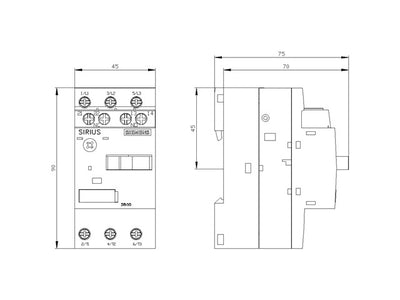

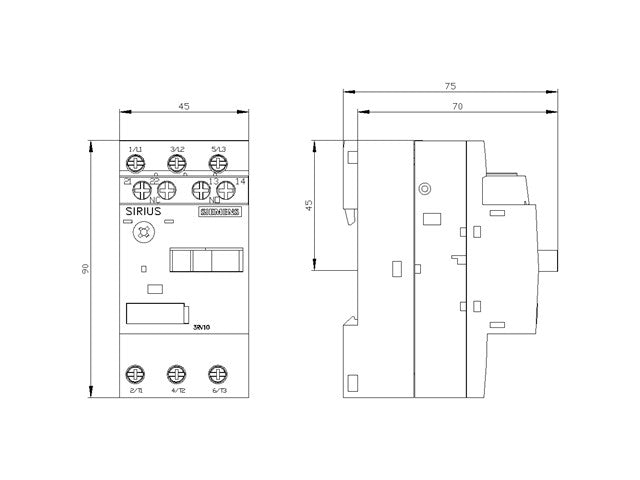

Dimensions (W × H × D): Approximately 45 × 90 × 75 mm
Weight: Approximately 297 g
Application: Protection of three-phase motors against overloads and short circuits in industrial control and automation systems.
Protect your industrial motors with the 3RV1011-1HA15 Circuit Breaker. Designed for reliable overload and short-circuit protection, this compact S00 breaker ensures optimal performance with a 5.5–8 A current range and robust 50 kA breaking capacity. Safeguard your operations while enhancing efficiency and safety in automation systems.
