Relay Module For Electrical Isolation Between Logic And Load With Screw Terminal Mounting Base And LED Status Indicator 230VAC 2c/o 8A/250VAC 32,5Kohm

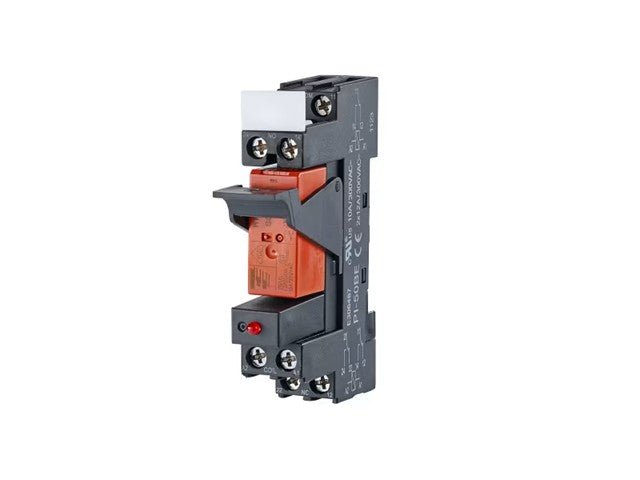

Relay Module

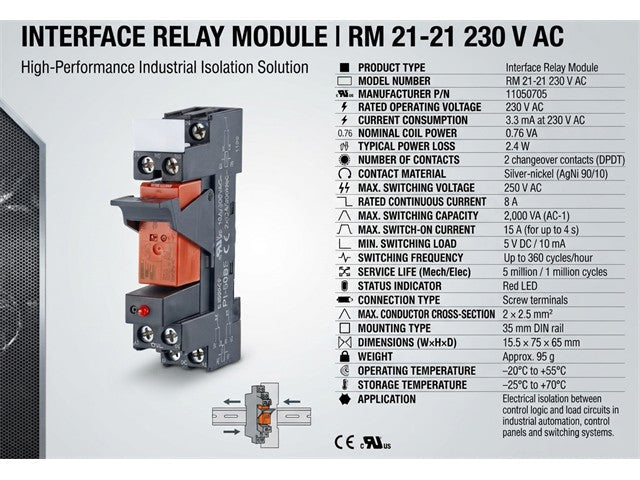

Specifications
- Product Type: Interface Relay Module
- Model Number: RM 21-21 230 V AC
- Manufacturer Part Number: 11050705
- Rated Operating Voltage: 230 V AC
- Current Consumption: 3.3 mA at 230 V AC
- Nominal Coil Power: 0.76 VA
- Typical Power Loss: 2.4 W
- Number of Contacts: 2 changeover contacts (DPDT)
- Contact Material: Silver-nickel (AgNi 90/10)
- Maximum Switching Voltage: 250 V AC
- Rated Continuous Current: 8 A
- Maximum Switching Capacity: 2,000 VA (AC-1)
- Maximum Switch-On Current: 15 A for up to 4 seconds
- Minimum Switching Load: 5 V DC / 10 mA
- Switching Frequency: Up to 360 switching cycles per hour
- Mechanical Service Life: 5 million switching cycles
- Electrical Service Life: 1 million switching cycles
- Status Indicator: Red LED
- Connection Type: Screw terminals
- Maximum Conductor Cross-Section: 2 × 2.5 mm²
- Mounting Type: 35 mm DIN rail
- Dimensions (W × H × D): 15.5 × 75 × 65 mm
- Weight: Approximately 95 g
- Operating Temperature: −20°C to +55°C
- Storage Temperature: −25°C to +70°C
- Application: Electrical isolation between control logic and load circuits in industrial automation, control panels and switching systems.
Downloads
Additional Information
| Device |
Module |
| Type |
Relay | Module |

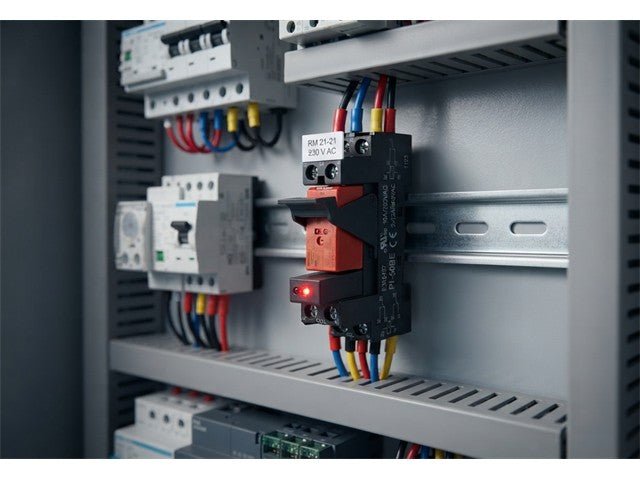

Enhance your industrial automation with the RM 21-21 230 V AC relay module. Designed for reliable electrical isolation, this interface relay features screw terminal mounting and a convenient LED status indicator, ensuring optimal performance in control panels and switching systems. With a robust capacity of 8A and 2 million switching cycles, it’s the perfect choice for efficient load management and enhanced system safety.
