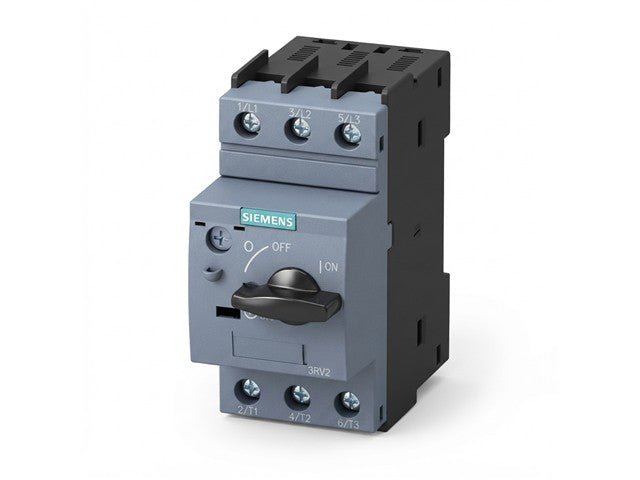

3RV2011-1JA10
SKU: 3RV2011-1JA10
BRAND: Siemens
R 1,229.35 (inc VAT) R 1,069.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
Circuit Breaker Size S00 For Motor Protection, CLASS 10 A-release 7...10 A N Release 130 A Screw Terminal Standard Switching Capacity
Circuit Breaker Size S00

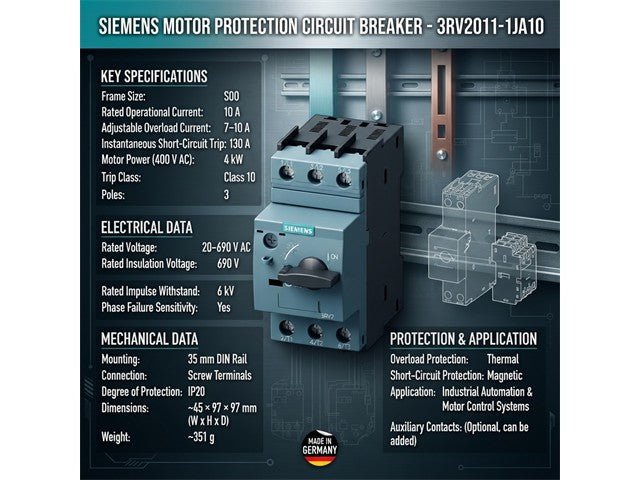

Specifications
Product Type: Motor Protection Circuit Breaker
Model Number: 3RV2011-1JA10
Frame Size: S00
Number of Poles: 3
Rated Operating Voltage: 20–690 V AC
Rated Operational Current: 10 A
Adjustable Overload Current Range: 7–10 A
Instantaneous Short-Circuit Trip Current: 130 A
Trip Class: Class 10
Motor Power Rating at 230 V AC: 2.2 kW
Motor Power Rating at 400 V AC: 4 kW
Rated Insulation Voltage: 690 V
Rated Impulse Withstand Voltage: 6 kV
Overload Protection: Thermal
Short-Circuit Protection: Magnetic
Phase Failure Sensitivity: Yes
Auxiliary Contacts: Not integrated; auxiliary contacts can be added
Connection Type: Screw terminals
Mounting Type: 35 mm DIN rail
Degree of Protection: IP20
Dimensions (W × H × D): Approximately 45 × 97 × 97 mm
Weight: Approximately 351 g

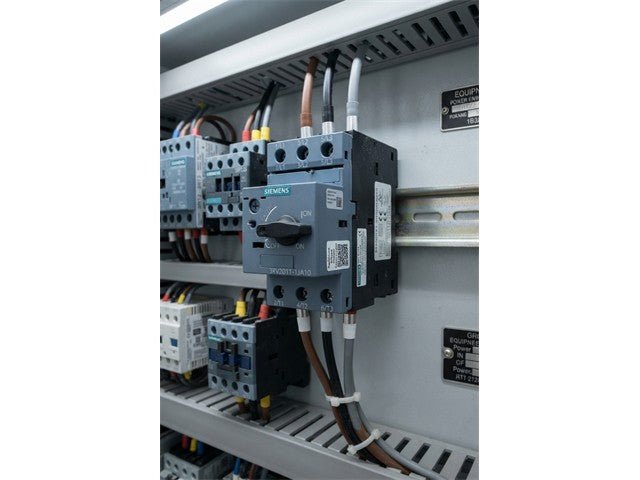

Application: Protection of three-phase motors against overload, short circuits and phase failure in industrial automation and motor control systems.
Downloads
Additional Information
Device
Circuit Breaker
Type
Circuit | Breaker | Size | S00
Ensure optimal motor protection with the 3RV2011-1JA10 Circuit Breaker. Designed for three-phase motors, this reliable device safeguards against overloads and short circuits, enhancing safety in industrial automation. With adjustable overload settings and a compact size, it’s perfect for efficient motor control.
