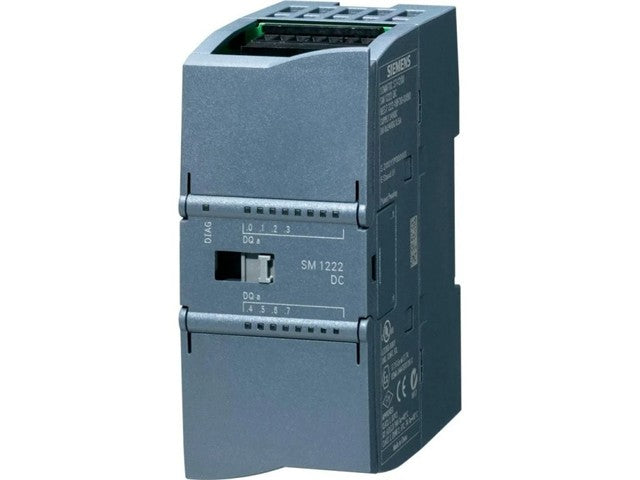

SIMATIC S7-1200, Digital Output SM 1222, 16 DO, 24 V DC, transistor 0.5 A
SIMATIC S7-1200, Digital Output
Specifications
- Product Type: Digital Output Module (SM 1222)
- Output Type: Relay
- Number of Digital Outputs: 16
- Number of Relay Outputs: 16
- Rated Relay Coil Supply Voltage: 24 V DC
- Supply Voltage Range: 20.4–28.8 V DC
- Load Voltage (DC): 5–30 V DC
- Load Voltage (AC): 5–250 V AC
- Rated Output Current: 2 A per Output
- Maximum Resistive Load: 2 A per Output
- Maximum Inductive Load: 2 A per Output
- Maximum Lamp Load:
- Output Delay:
- OFF to ON: 10 ms (max.)
- ON to OFF: 10 ms (max.)
- Relay Mechanical Life: Up to 10 million operations
- Relay Electrical Life: Up to 100,000 operations (at rated load)
- Short-Circuit Protection: No (external protection required)
- Backplane Bus Current: 135 mA (5 V DC max.)
- Digital Output Current Consumption: 11 mA per relay coil (max.)
- Typical Power Dissipation: 8.5 W
- Cable Length:
- Mounting: SIMATIC S7-1200 DIN Rail
- Operating Temperature: 0°C to +55°C
- Dimensions (W × H × D): 45 × 100 × 75 mm
- Typical Applications:
- PLC output expansion
- Industrial automation
- Machine control
- Process control
- Conveyor systems
- Motor, valve, and solenoid switching
- AC/DC load control
