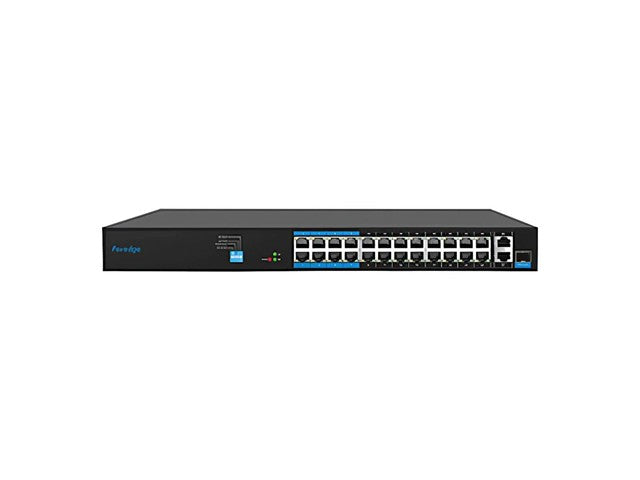

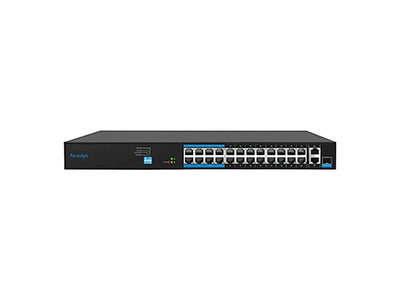

AI8024 is an AI PoE switch specially designed for security transmission and WIFI coverage. It can meet the PoE power supply requirements of various types of devices such as WIFI AP, IP-camera, WIFI bridge, and IP phone. The product has 24 100M PoE ports, 2 gigabit RJ45 ports and 1 gigabit SFP port (25 ports are gigabit combo), which are suitable for network access and edge aggregation. The product has 4 working modes, AI VLAN mode, AI Extend mode, AI PoE mode, AI QoS mode. By default, all ports communicate freely. AI VLAN mode is enabled to isolate ports 124 from each other, which can effectively suppress network storms and improve network performance; When enable AI Extend mode, the effective transmission distance of 1-8 ports can reach 250 meters, which is suitable for long-distance monitoring and power supply; When enable AI PoE mode, the switch automatically detects the working condition of the PD device, and automatically restarts the device when abnormal devices are found; When the AI QoS mode is enabled, the video data will be prioritized when the device is congested to make the video smoother. It is the best choice for PoE networking in hotels, campuses, factory dormitories and small and medium-sized enterprises.

• Lightning Protection:
  • All ports support 6KV lightning protection
  • Supports power supply over-temperature protection
  • Supports over-voltage protection
  • Supports surge current protection
  • Multiple built-in safety protection mechanisms
• Switching Features:
  • Non-blocking switching architecture
  • All ports support wire-speed forwarding
  • 2 × Gigabit RJ45 ports
  • 1 × Multiplexed Gigabit SFP port
  • Supports IEEE 802.3x full-duplex flow control
  • Supports half-duplex backpressure flow control
  • Supports Auto MDI/MDIX (auto-flipping upstream ports)
• AI DIP Switch Functions:
• AI Extend:
  • Ports 1–8 support up to 250m long-distance PoE transmission
  • Recommended use of Cat5e or higher network cables
• AI VLAN:
  • Isolates ports 1–24 from each other
  • Suppresses network storms
  • Improves overall network performance
• AI QoS:
  • Prioritizes identified video data
  • Ensures smoother video transmission
• AI PoE:
  • Automatically detects powered device (PD) status
  • Detects non-responsive devices
  • Automatically power-cycles and restarts failed devices
• PoE Features:
  • Compliant with IEEE 802.3af & IEEE 802.3at standards
  • Maximum PoE power per port: 30W
  • Supports PoE short-circuit protection
  • Supports over-current protection
  • Supports over-temperature protection
  • Supports AI PoE automatic restart function
• Ease of Use:
  • Plug and play
  • No configuration required
  • Zero-configuration deployment
  • Automatically supplies power to compatible PD devices

• Network Interface: 24 × 10/100 Mbps PoE RJ45, 2 × 10/100/1000 Mbps non-PoE RJ45, 1 × Gigabit SFP
• Networking Standards: IEEE 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab, 802.3af, 802.3at
• Backplane Bandwidth: 8 Gbps (non-blocking)
• Forwarding Rate: 55 Mpps
• MAC Address Table: 8K
• Forwarding Mode: Store-and-forward

LED Indicators

• Power: 1
• LINK/ACT: 26
• PoE: 24

PoE

• Pin Assignment: 1/2 (+), 3/6 ()
• Max Output Power per Port: 30 W
• Total PoE Budget: 250 W

Dimensions

• 440 × 180 × 44 mm

Environmental Specifications

• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: 40°C ~ 70°C
• Operating Humidity: 10%90% RH (non-condensing)
• Storage Humidity: 5%90% RH (non-condensing)

Certifications

• CE, RoHS, FCC, CCC



1. Datasheet - AI8024M

Device	Switch
Type	Unmanged | 24-Port | Fast Ethernet
