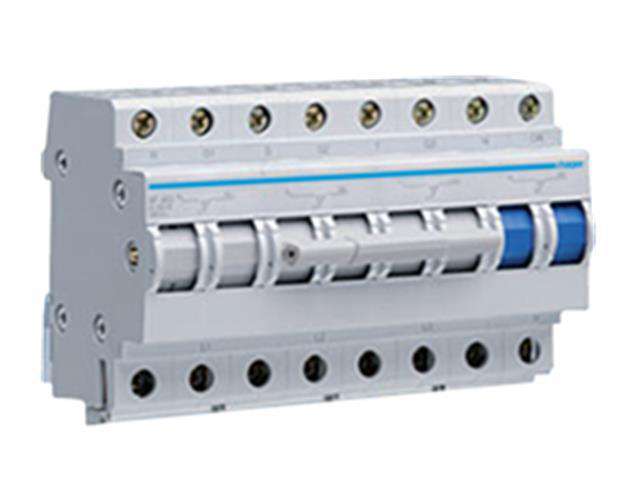

CHANGEOVER SWITCH SF463

SKU: CHANGEOVER SWITCH SF463

BRAND: Hager


Hager Din Rail Changeover Switch 63A 4Poles 4.5kA ON-OFF-ON 400V

Overview

Features

Specification



  • Number of modules : 8
  • Number of poles : 4 P
  • Type of contacts : changeover with zero position
  • Rated operational voltage Ue : 400 V
  • Rated Current : 63A
  • Rated operational current in AC21 : 63 A
  • Short circuit current withstand with MCB 63A Curve C - 4,5kA 4,5 kA
  • Total power loss under IN : 7,2W
  • Frequency : 50/60 Hz
  • Rated insulation voltage : 500V
  • Rated impulse withstand voltage : 4000V
  • Operating temperature : -20to 50 °C
  • Electrical durability at nominal load in AC21in operating cycles : 5000
  • Number of mechanical operations : 100000
  • Connection cross-sect. rigid cable : 25mm²
  • Connection cross-sect. flexible cable : 16mm²
  • Height of installed product : 90 mm
  • Width of installed product : 143 mm
  • Depth of installed product : 72mm
  • Tightening torque : 2,9Nm
  • Protection index IP : IP20
