Clearline HD\CCTV Signal & PSU Protector (BNC M/F 75OHM) Insertion Loss @ 10MHZ~ 0.8Db , 1V P-P , Max Discharge Current:2KA , Range Upto:100M , Max PSU Voltage:15VDC @ 1A

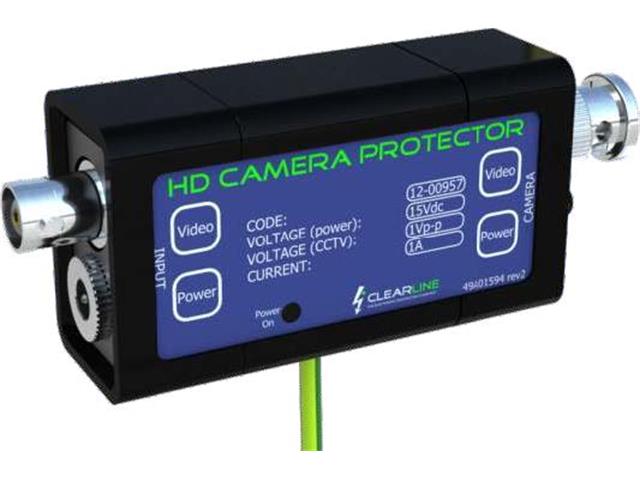

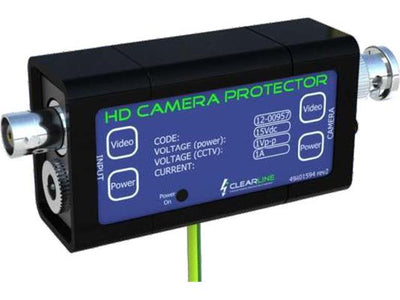

HD CCTV Signal and PSU Protector
Overview
Coaxial protection for High Definition data transmission lines. Suitable for HD CCTV applications.
They protect both the HD CCTV signal as well as the DC power supply voltage.
These devices exhibit negligible insertion loss and are fitted in line at the equipment connection.
Features
- Easy installation
- Low insertion loss
- Failsafe protection
- Combined CCTV + Power
- Supply protection
Specifications
- Max operating voltage: 1V p-p
- Max operating current: 0.3A
- Max discharge current (Differential mode):2kA
- Max discharge current (Common mode):2kA
- Residual voltage:< 2.5V
- Insertion loss at 10MHz:0.8dB
- Connectors:BNC M-F
- Impedance:75ohm unbalanced
- Range:Up to 100m
- Temperature range:- 10°C to 70°C
- Application:HD CCTV Composite
- Max PSU voltage:15VDC
- Max PSU current:1.0A
- Max clamping voltage (differential mode):<20V
- Max surge current rating (differential mode):71A (8/20us)
- Connectors:DC Jack 2.1mm
- Application:Camera protection plus power supply
Downloads
Additional Information
Device |
Protector |
Type |
HD CCTV | Signal and PSU |
