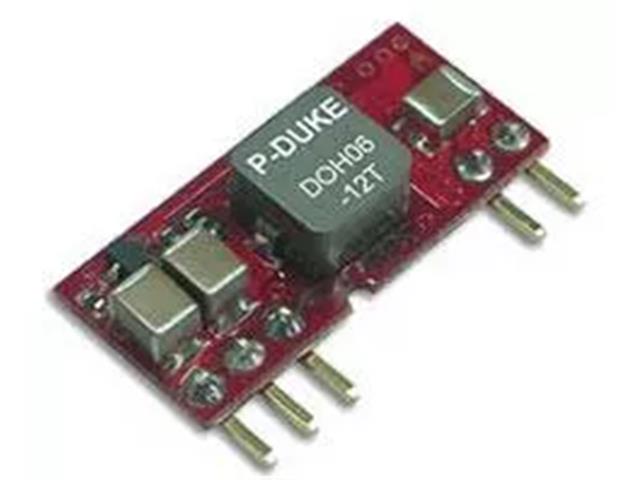

DOH06-12T-P

Name: DOH06-12T-P - Communica [Part No: DOH06-12T-P]
Brand: P-Duke
SKU: DOH06-12T-P
Price: 685 ZAR
Availability: InStock

SKU: DOH06-12T-P

BRAND: P-Duke

In Stock
R 787.75_{(inc VAT)}
R 685.00_{(ex VAT)}

Collections: Power

Type: Power Supplies

Category: DC DC Converters

P-DUKE : DC/DC Converter VI= (8.3-14V)12V VO= (0.75-5V)3.63V 6A 89% Efficiency Sip Positive Logic

SIP Format for Soldering on Printed Circuit

Overview

The DOS (H) 06-12T series converters are voltage reducers, buck converters, designed to power microprocessors or other components starting from a voltage of 12V. They are available in different shapes. They have high efficiency over the entire input and output voltage range. The output voltage is configurable by means of an external resistance (trimming) and they allow remote switching on and off. They are protected against overloads, short circuits and low input voltage.

Designed to comply with IEC / UL / EN60950-1 safety regulations.

Specifications

Input range: 8.3-14Vdc (8.3-13.2 if the output voltage> 3.63Vdc)
Output voltage: 5Vdc Adjustable by trimming (0.75 to 5Vdc)
Output current: 6A
Power: 30W
Converter not isolated
Typical efficiency: 89%.
Programmable output voltage through resistance (trimming)
Low noise and curly
Remote on and off
No need for minimum load at the exit
Working temperature: from -40 to + 85ºC . See the drift curve according to temperature in the technical sheet
Maximum box temperature: + 115ºC
Dimensions (Length x Width x Height) [mm]: 22.9 x 6 x 10.2

Downloads

Datasheet - DOH06-12T-P

Additional Information

Device	SIP Format
Type	for Soldering on Printed Circuit
