FLUKE 114

Name: FLUKE 114 - Communica [Part No: FLUKE 114]
Brand: Fluke
SKU: FLUKE 114
Price: 4590 ZAR
Availability: InStock

SKU: FLUKE 114

BRAND: Fluke

R 5,278.50_{(inc VAT)}
R 4,590.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Test & Measurement

Type: Multimeters & Voltmeters

Category: Digital Multimeters

Digital Multimeter True RMS Auto Range 600V Resistance 40MEG OHM CAT111 600V

Digital Multimeter True

Overview

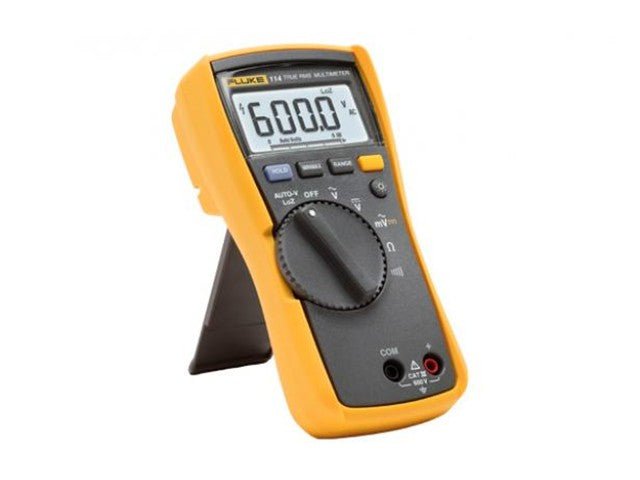

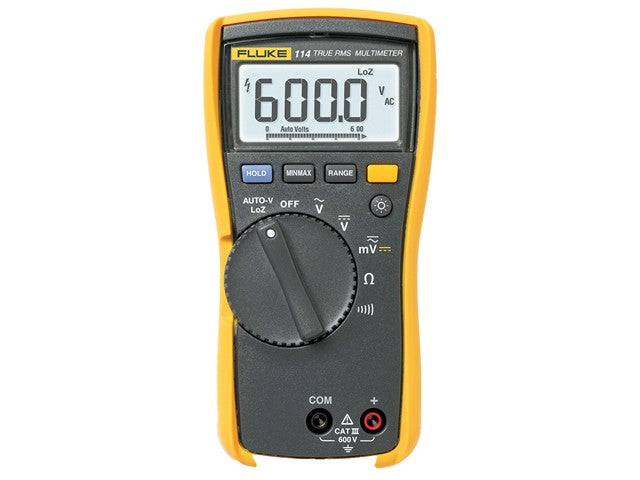

Product overview: Fluke 114 Electrical Multimeter

Fluke 114 digital multimeter is the ideal choice for go/no-go testing

Designed for easy one-handed operation, the compact Fluke 114 True RMS digital multimeter is the perfect troubleshooting tool for go/no go testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. And you can use the LoZ function to identify so-called ghost voltage and prevent false readings.

The Fluke 114 displays True-RMS voltage and current readings with 6000 count resolution, and tests frequency, continuity and resistance. A large white LED backlight aids work in poorly lit areas. And its easy-open battery access door makes battery changes easy.

A great choice for everyday troubleshooting, the Fluke 114 Electrical Multimeter is CAT III 600 V safety rated and is a compact True-RMS meter.

Fluke 114 multimeters are independently tested for safe use in CAT III 600V environments

Other useful features:

Features a compact ergonomic design for one-handed operation
Comes with an holster with probe holders for easy storage
Features manual and automatic ranging
Safety rates CAT III 600 V
Fits into optional ToolPak™ magnetic hanger for hands-free operation

Features

Maximum voltage between any terminal and earth ground	600 V
Safety	IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V
Display	Digital: 6,000 counts, updates 4 per second
Bar graph	33 segments, updates 32 per second
Operating temperature	-10°C to + 50°C
Storage temperature	-40°C to + 60°C
Battery type	9 volt Alkaline, IEC 6LR61
Battery life	400 hours typical, without backlight
Accuracy specifications
DC millivolts	Range/resolution	600.0 mV / 0.1 mV
	Accuracy	± ([% of reading] + [counts]): 0.5% + 2
DC volts	Range/resolution	6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V
	Accuracy	± ([% of reading] + [counts]): 0.5% + 2
Auto volts	Range/resolution	600.0 V / 0.1 V
	Accuracy	2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)
AC millivolts¹ True RMS	Range/resolution	600.0 mV / 0.1 mV
	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
AC volts¹ True RMS	Range/resolution	6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V
	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
Continuity	Range/resolution	600 Ω / 1 Ω
	Accuracy	Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.
Ohms	Range/resolution	600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ
	Accuracy	0.9% + 1
	Range/resolution	40.00 MΩ / 0.01 MΩ
	Accuracy	5% + 2
1. All ac voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. 2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. 2. Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current. 2. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.
Mechanical & General Specifications
Size	167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight	550 g
Warranty	3 years

Downloads

Datasheet - FLUKE 114

Additional Information

Device	Multimeter
Type	Digital \| True

The FLUKE 114 Digital Multimeter is your go-to solution for accurate electrical testing. With True RMS technology and AutoVolt capability, it effortlessly measures AC/DC voltage up to 600V, ensuring reliable results every time. Its compact design and one-handed operation make it perfect for everyday troubleshooting, while the LoZ function eliminates ghost voltage for precise readings. Ideal for both professionals and DIYers, the Fluke 114 is the essential tool for safety-rated electrical work.
