Growatt Pure Sine Wave Inverter 3000VA/3000W, 48VDC, O/P:230VAC MAX PV:2400W, MPPT Voltage :60-115VDC, Max PV OCV:145VDC, Max Solar Chrge Current:30A, AC Charge Current:15A, Surge PWR:6000VA (120x315x390mm) 8kg
Pure Sine Wave Inverter 3000VA/3000W
Overview

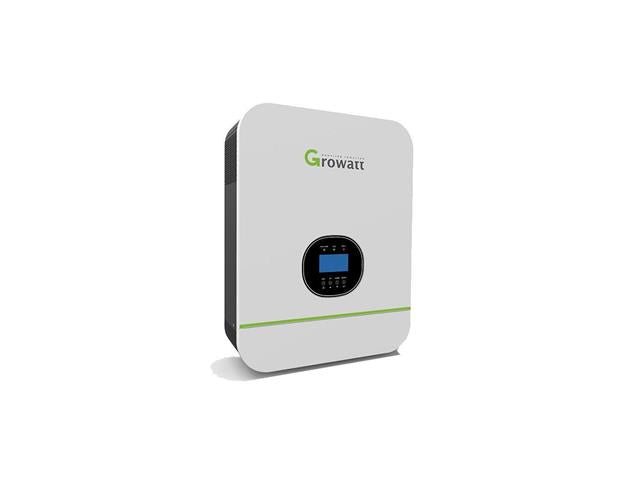

Growatt SPF 3000-5000TL HVM series off grid solar inverter is integrated with a MPPT solar charge controller, Transformerless design provides reliable power conversion in compact size.
Feature
- Integrated MPPT charge controller
- Configurable grid or solar input priority
- WIFI remote monitoring
- Parallel for scalability
Specifications
Inverter Output
- Waveform: Pure Sine-Wave
- Rated Power: 3000VA/3000W
- Parallel Capability: No
- AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz
- Surge Power: 6000VA
- Efficiency (Peak): 93%
- Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances)
Solar Charger
- Maximum PV Array Power: 2400W
- MPPT Range @ Operating Voltage: 60VDC ~115VDC
- Standby Power Consumption: 2W
- Maximum PV Array Open Circuit Voltage: 145VDC
- Maximum Efficiency: 97%
- Maximum Solar Charge Current: 40A
AC Charger
- Charge Current: 15A
- AC Input Voltage: 230 VAC
- Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
- Frequency Range: 50Hz/60Hz (Auto sensing)
Physical
- Dimension (D/W/H) in mm: 120*315*390
- Net Weight (kgs): 8
Downloads
Additional Information
Device |
Inverter |
Type |
Pure Sine Wave | 3000VA/3000W |
