GT-802

SKU: GT-802

BRAND: Planet

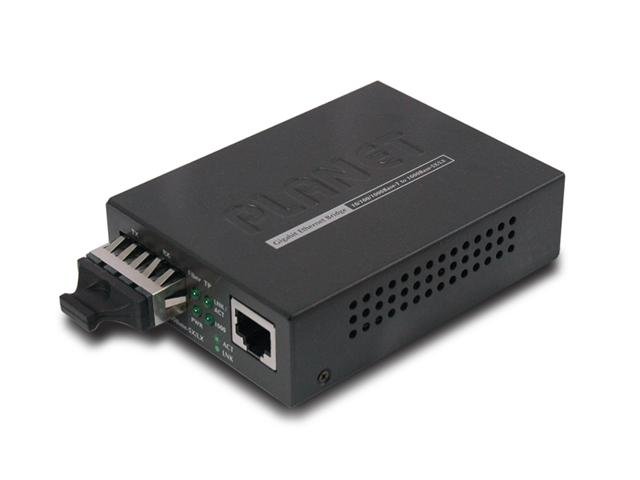

Planet 10/100/1000Base-T to 1000Base-SX Media Converter (SC,MM)-220/550m

Gigabit Media Converter

Features

Standards:

  • Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX Ethernet Standard

Interface:

  • One 10/100/1000Base-T port with RJ-45 connector
  • One 1000Base-SX/LX port with LC/SC/WDM connector supporting multi-mode or single-mode fiber optic cable
  • Auto-negotiation and Auto-MDI / MDI-X for 10/100/1000Base-T port

Layer 2 Features:

  • Back-pressure and IEEE 802.3x compliant flow control and full wire-speed forwarding rate
  • 9K Jumbo Frame size supported
  • Link Loss Return (LLR) switch on each fiber optic to aid in troubleshooting remote network connections
  • Link Loss Carry Forward (LLCF) work with LLR in diagnosing network connections

Smart Management:

  • Provides DIP switch for fiber (Auto-negotiation / Manual) and LFP function(Disable / Enable) setting
  • Manageable through Managed Media Converter Chassis System (MC-1600MR/MC-1610MR series)
  • Bandwidth control / TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test function provided with MC-1610MR / MC-1610MR48 Managed Media Converter Chassis System

Hardware:

  • Used as a stand-alone device or work with Managed Media Converter Chassis for up to 16 converter with redundant power supply for optional expansion use
  • LED indicators for converter status
  • Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode fiber / 1000Base-SX / LX mini GBIC module
  • EMI standards complies with FCC, CE class A

Downloads

Additional Information

Device Converter
Type Gigabit | Media
