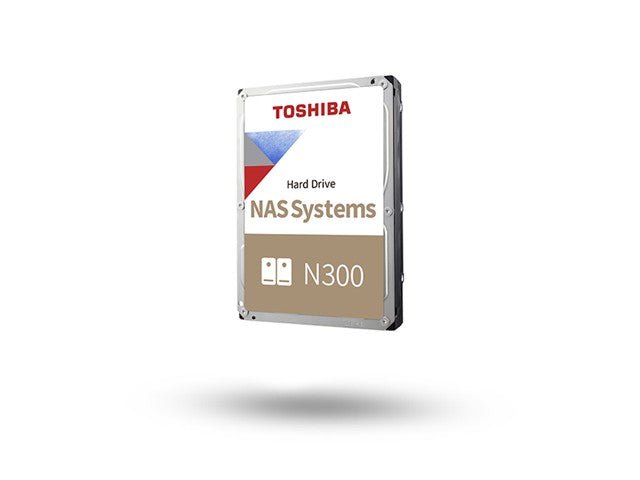

• 3.5“ SATA Hard Drive
• 7,200 rpm
• 512 MB buffer
• High reliability and enhanced real-time performance
• 24/7 operation

Use for

• NAS and Multimedia Server
• Desktop RAID and Server
• Private Cloud Storage
• Small Business Server and Storage.

• Form factor : 3.5-inch.
• Interface : SATA 6.0 Gbit/s.
• Recording Technology : CMR.
• Drive bays supported : up to 8.
• Rotational Vibration (RV) Sensors : yes.
• Shock Sensor : yes.
• Advanced Format (AF) : yes.
• RoHS compatible : yes.
• Halogen free : yes.

Performance

• Rotational speed (rpm) : 7,200.
• Max. data transfer speed (sustained MB/s Typ.) : 281.
• Buffer size (MB) : 512.

Reliability

• Workloads (TB/year) : 180.
• MTTF (hours) : 1,200,000.
• Unrecoverable error rate : 1 per 10^15.
• 24 x 7 operation : yes.
• Limited warranty (years) : 3.

Power Management

• Supply voltage : 5 V DC +10 %/-7 %, 12 V DC ±10 %.
• Consumption (operating) : 8.02 W typ..
• Consumption (active idle) : 4.35 W typ..
• Dimensions : 147 (L) x 101.85 (W) x 26.1 (H) mm.
• Weight : 720 g.
• Temperature (operating/non-operating) : 5 to 60 °C, -40 to 70 °C.
• Vibration (operating)

  • 7.35 m/s2 (0.75 G) (5 to 300 Hz)
  • 2.45 m/s2 (0.25 G)(300 to 500 Hz).
• Vibration (non-operating)

  • 29.4 m/s2 {3.0 G}
  • (5 to 500 Hz).
• Shock (operating)

  • 490 m/s2 {50 G}
  • (2 ms duration).
• Shock (non-operating) : 1,960 m/s2 {200 G} (2 ms duration)
• Acoustics (idle mode) : 20 dB typ

1. Datasheet- HARD DRIVE 6TB HDWG760EZSTA
