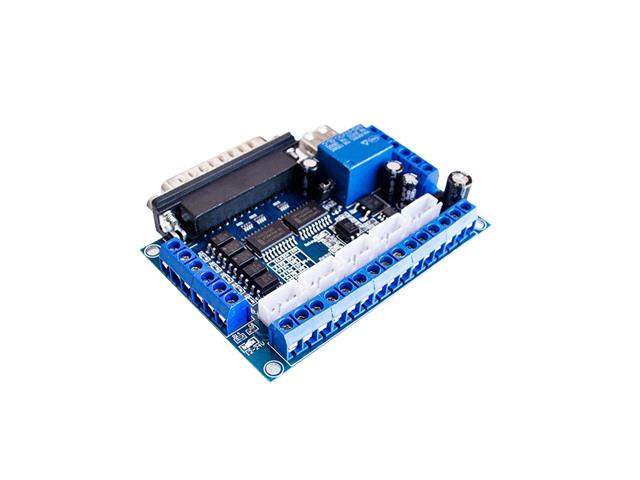

HKD 5 AXIS MACH3 STEPPER I/FACE

Name: HKD 5 AXIS MACH3 STEPPER I/FACE - Communica [Part No: HKD 5 AXIS MACH3 STEPPER I/FACE]
Brand: Communica
SKU: HKD 5 AXIS MACH3 STEPPER I/FACE
Price: 100 ZAR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: HKD 5 AXIS MACH3 STEPPER I/FACE

BRAND: Communica

R 115.00_{(inc VAT)}
R 100.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: IoT, Internet of things

Type: 3D & CNC Controllers & Shields

Category: CNC Controllers & Shields, Iot

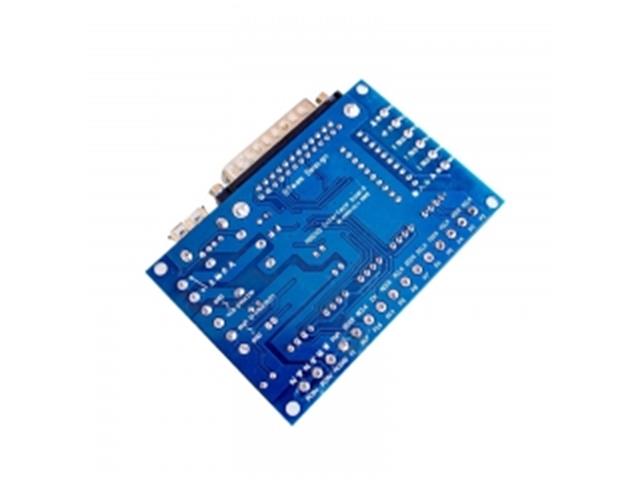

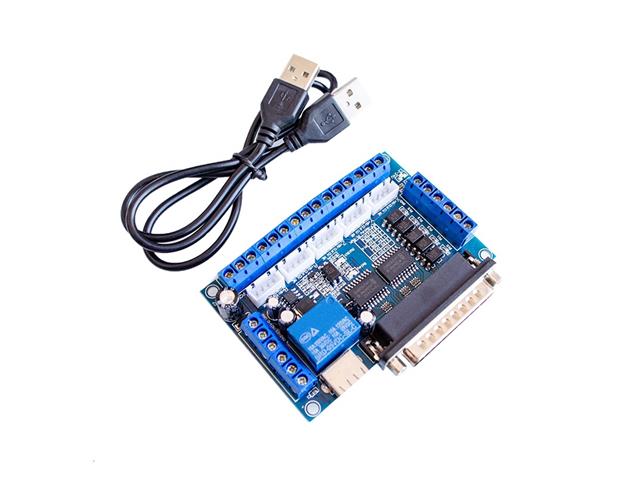

5 Axis MACH3 CNC Breakout Board Interface for Stepper Motor Driver

Overview

The latest upgraded 5 axis breakout board is specially designed for the CNC single axis 2-phase stepper driver controller. The breakout board using high-performance three-state bus driver 74HC244 and Schmitt inverter 74HC14 amplified, The input signal is amplified, rectified, filtered to make the drive capability of the output signal more stable and stronger. With this 5 axis breakout board, any 1-5 Microstepper driver controllers can be directly controlled by the PC via the MACH3, EMC2, KCAM4, etc. parallel-control CNC software

Features

High performance, cost-effective
Maximum support 5-axis stepper motor driver controllers
Compatible with MACH3, Linux CNC (EMC2) etc. parallel-control CNC software
USB power supply and peripherals powered phase are separated to protect computer security
All the signals are opto-isolated which can protect your computer security
5-input interface to define the Limit, Emergence-Stop, Cutter alignment etc
Wide input voltage range: 12-24V, and with anti-reverse function
One relay output control interface, accessed by the spindle motor or the air pump, water pump, etc
Output 0-10V analog voltage for inverter to control the spindle speed

Please note this Board needs to be used with an Old Computer with a Parallel Port.

It does not work with a USB to Parallel converter !!

Refer to the attached Manual before you try to use this board.

Specifications

Input Voltage : USB port from PC and 12-24V power supply
Drive type : Pulse and Direction Signal Control
Suitable Microstep Driver : 2 Phase Microstep Driver
Net Weight : Approx 75g
Dimensions : 90 x 70 x 20mm (LxWxH)

Downloads

Additional Information

References

InpOut32 and InpOutx64

github

Transform your CNC projects with the HKD 5 Axis MACH3 Stepper Interface. This high-performance breakout board supports up to 5-axis stepper motor drivers and seamlessly integrates with MACH3 and Linux CNC software, delivering stable and reliable control. Experience enhanced precision in your machining tasks while ensuring your computer's safety with opto-isolated signals. Perfect for hobbyists and professionals alike, this cost-effective solution elevates your CNC capabilities.
