• Motorized Pan, Tilt, Rotate, Zoom for easy installation and monitoring
• Excellent low-light performance via powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB WDR technology
• Human and vehicle classification based on deep learning
• Water and dust resistant (IP66) and vandal resistant (IK10)
• Audio and alarm interface available

Camera

• Image Sensor : 1/1.8" Progressive Scan CMOS
• Max. Resolution : 2688 × 1520
• Min. Illumination : Color: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
• Shutter Time : 1/3 s to 1/100,000 s
• Day & Night : IR cut filter
• Angle Adjustment
  • Remote adjustment (Max. 1,000 cycles)
  • Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°

Lens

• Lens Type : Varifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV : 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3°to 23.6°, diagonal FOV 141.3°to 48.1°
• Lens Mount : Integrated
• Iris Type : Fixed
• Aperture : Max. F1.2
• Depth of Field1 m to ∞

DORI

• DORI
  • Wide: D: 61.5 m, O: 24.4 m, R:12.3 m, I: 6.2 m
  • Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I:15.1 m

Illuminator

• Supplement Light Type : IR
• Supplement Light Range : Up to 40 m
• Smart Supplement Light : Yes
• IR Wavelength : 850 nm

Video

• Main Stream
  • 50 Hz:
    • 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz:
    • 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
  • 50 Hz:
    • 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz:
    • 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream
  • 50 Hz:
    • 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz:
    • 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • *Third stream is supported under certain settings.
• Video Compression
• Main stream: H.265/H.264/H.264+/H.265+,
• Sub-stream: H.265/H.264/MJPEG,
• Third stream: H.265/H.264,
• *Third stream is supported under certain settings.
• Video Bit Rate : 32 Kbps to 16 Mbps
• H.264 Type : Baseline Profile,Main Profile,High Profile
• H.265 Type : Main Profile
• Bit Rate Control : CBR,VBR
• Scalable Video Coding (SVC) : H.264 and H.265 encoding
• Region of Interest (ROI) : 1 fixed region for main stream and sub-stream

Audio

• Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Type : Mono sound
• Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering : Yes

Network

• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View : Up to 6 channels
• API : ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host
  • Up to 32 users
  • 3 user levels: administrator, operator, and user
• Security : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network Storage : NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• Client : iVMS-4200,Hik-Connect,Hik-Central
• Web Browser
  • Plug-in required live view: IE 11,
  • Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
  • Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+


• Image Parameters Switch : Yes
• Image Settings : Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night Switch : Day,Night,Auto,Schedule
• Image Enhancement : BLC,HLC,3D DNR
• SNR : ≥ 52 dB
• Wide Dynamic Range (WDR) : 120 dB
• Privacy Mask : 4 programmable polygon privacy masks

Interface

• Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Audio
  • 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
  • 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm : 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Reset Key : Yes

Event

• Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart Event : Scene change detection
• Linkage : Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output, audible warning

Deep Learning Function

• Face Capture : Yes
• Perimeter Protection
  • Line crossing, intrusion, region entrance, region exiting
  • Support alarm triggering by specified target types (human and vehicle)

General

• Power
  • 12 VDC ± 25%, 1.05 A, max. 12.6 W,reverse polarity protection,two-core terminal block,
  • PoE: IEEE 802.3at, Class 4, max. 15 W
• Material : Metal
• Dimension : Ø155 mm × 140.4 mm (Ø6.10" × 5.53")
• Package Dimension : 203 mm × 203 mm × 230 mm (8.0" × 8.0" × 9.1")
• Weight : Approx. 840 g (1.9 lb.)
• With Package Weight : Approx. 1450 g (3.2 lb.)
• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function : Heartbeat,mirror,password reset via email,pixel counter,anti-banding,flash log
• Language : 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

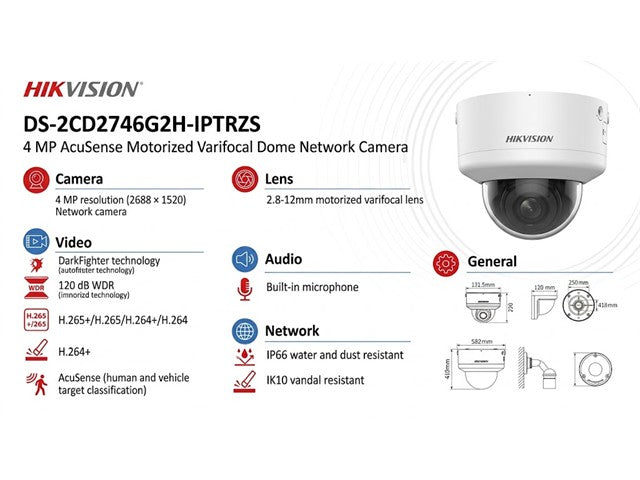

1. Datasheet - HKV DS-2CD2746G2H-IPTRZS
