• Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
• Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
• Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
• Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
• High resolution 12 MP: capturing clear images even when dewarped into 4-image PTZ mode
• Each image is clear and detailed

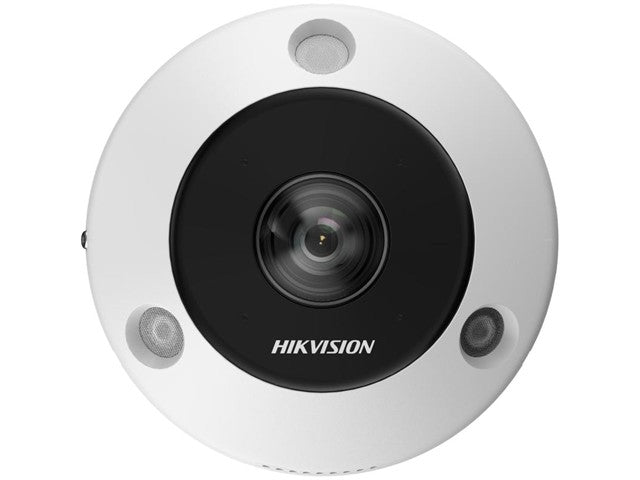

• Panomorph lens RPL: 89VVT
• Water and dust resistant (IP67) and vandal resistant (IK10)

Camera

• Image Sensor : 1/1.8" Progressive Scan CMOS
• Max. Resolution : 3504 × 3504
• Min. Illumination : Color: 0.03 Lux @ (F2.2, AGC ON),B/W: 0.006 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
• Shutter Time : 1 s to 1/100,000 s
• Day & Night : IR cut filter

Lens

• Lens Type : Fixed focal lens, 1.29 mm
• Focal Length & FOV : 1.29 mm, horizontal FOV 180°, vertical FOV 180°
• Iris Type : Fixed
• Aperture : F2.2
• Depth of Field : 0.2 m to ∞

DORI

• DORI
• D: 27.9 m
• O: 11.1 m
• R: 5.6 m
• I: 2.8 m

Illuminator

• Supplement Light Type : IR
• Supplement Light Range : Up to 15 m
• Supplement Light Number : 3
• IR Wavelength : 850 nm
• Smart Supplement Light : Yes

HEOP

• Open Resources
  • Memory: 60 MB,
  • Smart RAM: 800 MB,
  • eMMC: 2 GB
• Computing Power : 2 TOPS
• Open Capability : HEOP 2.0 OpendevSDK
• Deep Learning Structure : Caffe,TensorFlow,PyTorch
• Programming Language : C,C++

Video

• Main Stream
• 50 Hz: 25 fps/60 Hz: 30 fps:
• Fisheye View : 3504 × 3504, 3024 × 3024, 2560 × 2560, 2048 × 2048
• 180 Panorama View: 3072 × 2304, 2048 × 1536
• 180 Dual Channel Panorama View: 3072 × 1152
• Panorama View: 3072 × 2304, 2048 × 1536
• 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1600 × 1200
• Fisheye + 3PTZ View:
  • camera 01: 2560 × 2560, 2048 × 2048, 1280 × 1280
  • camera 02/camera 03/camera 04: 1600 × 1200
• 4PTZ Fusion View: 3200 × 2400, 2048 × 1536
• Sub-Stream: 50 Hz: 25 fps/60 Hz: 30 fps:
• Fisheye View: 720 × 720, 480 × 480
• 180 Panorama View: 640 × 480, 320 × 240
• 180 Dual Channel Panorama View: 640 × 480, 320 × 240
• Panorama View: 640 × 360, 320 × 240
• 4PTZ View: camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240
• Fisheye + 3PTZ View:
  • camera 01: 720 × 720
  • camera 02/camera 03/camera 04: 640 × 480, 320 × 240
• Video Compression
  • Main stream: H.265+/H.265/H.264+/ H.264,
  • Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate : 32 Kbps to 16 Mbps
• H.264 Type : Baseline Profile,Main Profile,High Profile
• H.265 Type : Main Profile
• Bit Rate Control : CBR,VBR
• Scalable Video Coding (SVC) : H.264 and H.265 encoding
• Region of Interest (ROI) : 4 fixed regions for each stream

Fisheye Display

• Mount Type : Support wall/table/ceiling mounting
• Decoding Mode : Support hardware decoding and software decoding
• Display Mode
  • 20 display modes in total,
  • Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder,
  • Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Audio

• Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering : Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP
• Simultaneous Live View : Up to 20 channels
• API
  • Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP,
  • Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX
• User/Host
  • Up to 32 users
  • 3 user levels: administrator, operator, and user
• Security : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
• Network Storage
  • NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
  • Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client : iVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect
• Web Browser
  • Plug-in required live view: IE 10, IE 11,
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
  • Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Parameters Switch : Yes
• Image Settings : saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
• Day/Night Switch : Day,Night,Auto,Schedule,Alarm Trigger
• Wide Dynamic Range (WDR) : Digital WDR
• Image Enhancement : BLC,HLC,3D DNR,Distortion Correction,Defog
• Privacy Mask : 8 programmable polygon privacy masks
• Picture Overlay : LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface

• Ethernet Interface : 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Built-in Microphone : Yes, 4 built-in microphones
• Built-in Speaker : Yes, 1 built-in speaker
• Audio
  • 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
  • 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm : 2 inputs, 2 outputs (max. 24 VDC, 1 A)
• RS-485 : 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset Key : 1 Reset Key

Event

• Basic Event : Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event : Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
• Linkage : Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

• Deep Learning Function
• People Counting
  • Counts people entering, exiting and passing by separately (The data is stored in the flash.)
  • Supports real-time uploading and uploading by statistic cycle
  • Sends email reports on daily, weekly, monthly or annually basis
  • Supports up to 3 detection regions, and independent arming schedule and linkage method
• Queue Management
  • Supports up to 8 detection regions, and independent arming schedule and linkage method
  • Supports 2 detection modes: regional people queuing-up, waiting time detection
  • Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
  • Supports raw data export for further analysis
  • Supports real-time data uploading and scheduled data uploading
  • Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
  • Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
• Heat Map
  • A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,
  • Two report types are available, space heat map and time heat map line chart.
• Intersection Analysis
  • Detects and analyze flow in an intersection-like scene, and generate reports
  • Support one intersection of up to 10 ways

General

• Power
  • 12 VDC ± 20%, 1 A, max. 11.5 W,two-core terminal block,
  • PoE: IEEE 802.3af, Class 3, max. 12.5 W
• Material : Metal
• Dimension : Ø140.3 mm × 59.4 mm (Ø5.5" × 2.3")
• Package Dimension : 260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")
• Approx. 715 g (1.58 lb.)
• With Package Weight : Approx. 1206 g (2.66 lb.)
• Storage Conditions : -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions : -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language
  • 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function : Heartbeat,flash log,password reset via email,password protection,one-key reset,anti-banding
• Heater : Yes
• Cable Length : 0.31 m (1.02 ft.)
