• Focuses on human and vehicle targets classification based on deep learning
• Support face capture. Up to 5 faces captured at the same time
• 1/2.8" progressive scan CMOS
• High quality imaging with 2 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• 25× optical zoom and 16× digital zoom provide close up views over expansive areas
• Expansive night view with up to 100 m IR distance
• Support H.265+/H.265 video compression

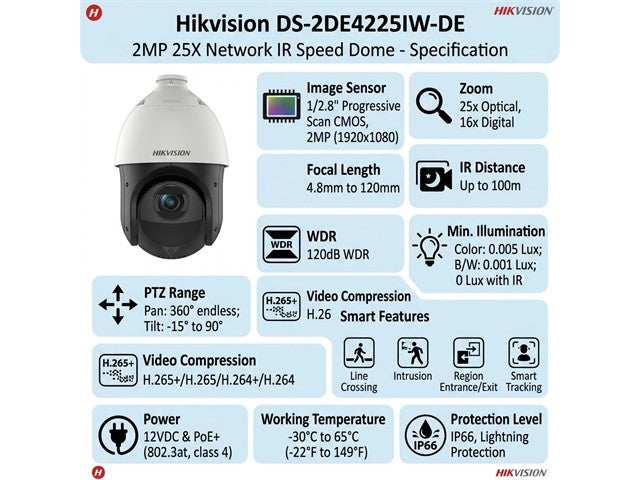

Camera

• Image Sensor : 1/2.8" progressive scan CMOS
• Max. Resolution : 1920 × 1080
• Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed : 1 s to 1/30,000 s
• Day & Night : IR cut filter
• Zoom : 25 × optical, 16 × digital
• Slow Shutter : Yes

Lens

• Focal Length : 4.8 mm to 120 mm
• FOV
• Horizontal field of view: 57.6° to 2.5° (wide-tele),
• Vertical field of view: 34.4° to 1.4° (wide-tele),
• Diagonal field of view: 64.5° to 2.9° (wide-tele)
• Focus : Auto, semi-auto, manual
• Aperture : Max. F1.6
• Zoom Speed : Approx. 3.6 s

Illuminator

• Supplement Light Type : IR
• Supplement Light Range : IR Distance: up to 100 m

PTZ

• Movement Range (Pan) : 360°
• Movement Range (Tilt) : -15° to 90° (auto flip)
• Pan Speed : Pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
• Tilt Speed : Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Pan : Yes
• Presets : 300
• Preset Freezing : yes
• Patrol Scan : 8 patrols, up to 32 presets for each patrol
• Pattern Scan : 4 pattern scans
• Park Action : Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• 3D Positioning : Yes
• PTZ Status Display : Yes
• Scheduled Task : Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
• Power-off Memory : Yes

Video

• Main Stream
• 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
• 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream
• 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
• 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream
• 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
• 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Video Compression
• Main stream: H.265+/H.265/H.264+/H.264
• Sub-stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264/MJPEG
• Video Bit Rate : 32 kbps to 16384 kbps
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.265 Type : Main profile
• Scalable Video Coding (SVC) : H.264 and H.265 encoding
• Region of Interest (ROI) : 8 fixed regions for each stream

Audio

• Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate : 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
• Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering : Yes

Network

• Protocols : IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• Simultaneous Live View : Up to 20 channels
• API : Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host : Up to 32 users, 3 user levels: administrator, operator, and user
• Security : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
• Network Storage : NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client : iVMS-4200, HikCentral Pro, Hik-Connect
• Web Browser : Chrome 57.0+, Firefox 52.0+, Safari 11+, IE11


• Image Parameters Switch : Yes
• Image Settings : Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Day/Night Switch : Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR) : 120 dB
• SNR : > 52 dB
• Defog : Digital defog
• Image Stabilization : No
• Image Enhancement : BLC, HLC, 3D DNR
• Privacy Mask : 24 programmable polygon privacy masks, mask color or mosaic configurable
• Regional Focus : Yes
• Regional Exposure : Yes

Interface

• Ethernet Interface : 1 RJ45 10M/100M self-adaptive Ethernet port
• On-board Storage : Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Audio
• 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%;
• 1 output (line out), line level, output impedance: 600 Ω
• Alarm : 1 input, 1 output
• Reset : Yes

Event

• Basic Event : Motion detection, video tampering alarm, exception, alarm input and output
• Smart Event : Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
• Linkage : Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

• Face Capture
• Detects up to 5 faces simultaneously.
• Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
• Perimeter Protection
• Line crossing, intrusion, region entrance, region exiting
• Support alarm triggering by specified target types (human and vehicle)

General

• Power
• 12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR;
• PoE (802.3at)
• Dimension : Ø 164.5 mm × 290 mm (Ø 6.48" × 11.42")
• Approx. 2 kg (4.41 lb.)
• Material : ADC12
• Operating Condition : -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
• Demist : Yes
