Hikvision Acusense TandemVu PTZ Camera 4MP, Focal Length:4.8~120mm , 25×Optical, 16×Digital, Image Sensor: Bullet CH:1/3" 2.8mm Lens - PTZ: 1/2.8" Progressive Scan CMOS, ICR, WDR, HLC, BLC, 3D DNR, RJ45, Self-adaptive 10M/100M Ethernet Port
Acusense TandemVu PTZ Camera
Overview

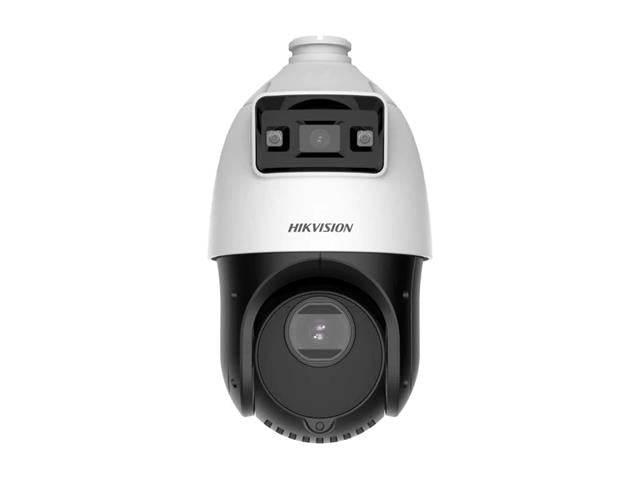

Hikvision DS-2SE4C425MWG-E(14F0) 4 MP 25 × IR Network Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the
25 × optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for
wide ranges of high-definition, such as rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.
Feature(s)
- Captures a large area and great details at the same time
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
- Secures an expansive area with 25× optical zoom and 16× digital zoom
- Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
- Expansive night view with up to 100 m IR distance & 30 m white light
- Supports 12V DC & PoE+
- Focuses on human and vehicle targets classification based on deep learning
Specifications
Camera
- Image Sensor : [Bullet channel]: 1/3" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
- Min. Illumination
- [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
- [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed : 1 s to 1/30,000 s
- Slow Shutter : yes
- Focus : semi-auto,manual,auto
- Zoom : [PTZ channel] 25 × optical, 16 × digital
- Day & Night : ICR
- Day/Night Switch : day, night, auto, scheduled-switch
- White Balance : auto,ATW,sodium lamp,fluorescent lamp,indoor,outdoor,MWB,Locked WB
- Max. Resolution : [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
Lens
- Focal Length : [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
- Zoom Speed : [PTZ channel]: approx. 3.6 s
- FOV
- [Bullet channel]: Horizontal field of view: 96.1°, Vertical field of view: 52.1°,Diagonal
field of view: 113.3°;
- [PTZ channel]:
- Horizontal field of view: 55° to 2.4° (wide-tele),
- Vertical field of view: 33° to 1.4° (wide-tele),
- Diagonal field of view: 61.5° to 2.8° (wide-tele)
- Aperture : [Bullet channel]: F1.0; [PTZ channel]: F1.6
Illuminator
- Supplement Light Type : [PTZ channel]: IR; [Bullet channel]: White Light
- Smart Supplement Light : Yes
- Supplement Light Range : [PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
PTZ
- Movement Range (Pan) : 360°
- Movement Range (Tilt) : -15° to 90° (auto flip)
- Pan Speed : pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
- Tilt Speed : tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
- Proportional Zoom : yes
- Presets : 300
- Patrol Scan : 8 patrols, up to 32 presets for each patrol
- Pattern Scan : 4 pattern scans
- Power-off Memory : yes
- Park Action : preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame
- scan,panorama scan
- 3D Positioning : yes
- PTZ Status Display : yes
- Preset Freezing : yes
- Scheduled Task : preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
- Exception Detection : IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot
Video
- Region of Interest (ROI) : 8 fixed regions for each stream
- Stream Type : main stream,sub-stream,third stream
- Main Stream
- [Bullet channel]:
- 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- [PTZ channel]:
- 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
- [Bullet channel]:
- 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
- 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- [PTZ channel]:
- 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
- 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
- [Bullet channel]:
- 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- [PTZ channel]:
- 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression : H.265,H.264,MJPEG
- Video Bit Rate : 32 kbps to 16384 kbps
- H.264 Type : baseline profile,main profile,high profile
- H.265 Type : main profile
- H.264+ : yes
- H.265+ : yes
- SVC : yes
Audio
- Audio Compression : G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
- Audio Bit Rate : 32 to 160 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
- Audio Sampling Rate : 8 kHz,16 kHz,32 kHz,48 kHz
- Environment Noise Filtering : yes
Smart Features
- Smart Record : ANR,Dual-VCA
Network
- API : Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- Network Storage : NAS (NFS, SMB/ CIFS), ANR
- Protocols : IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCPRTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,WebSocket,WebSockets
- Simultaneous Live View : 20
- User/Host : 32
- Security Measures : Authenticated username and password,MAC address binding,HTTPS encryption,802.1X authenticated access,IP address filter
- Client : iVMS-4200,Hik-Connect
- Web Browser : IE 10+, Chrome 57+, Firefox 52+, Safari 12+
- Image Settings : sharpness, saturation, brightness, contrast
- Wide Dynamic Range (WDR) : 120 dB
- SNR : ≥ 52 dB
- Defog : Digital defog
- Image Stabilization : EIS
- Image Enhancement : BLC,HLC,3D DNR
- Regional Focus : Yes
- Regional Exposure : Yes
- Image Parameters Switch : Yes
- Privacy Mask : [Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24
- programmable polygon privacy masks; mask color or mosaic configurable
Interface
- Communication Interface : RJ45, self-adaptive 10M/100M Ethernet port
- On-board Storage : Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
- Alarm Input : 1 alarm input
- Alarm Output : 1 alarm output
- Audio Input : 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
- Audio Output : 1 audio output, line level, impedance: 600 Ω
Event
- Basic Event : motion detection, video tampering alarm, alarm input and output, exception
- Smart Event : audio exception detection, line crossing detection, intrusion detection, region
entrance detection, region exiting detection
- Alarm Linkage : [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording
[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email,
trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan,
pattern scan)
Deep Learning Function
- Face Capture [Bullet channel] no,[PTZ channel] : yes
General
- General Function : mirror,password protection,watermark,IP address filter
- Power : 12VDC, PoE+
- Power Consumption and Current : Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
- Operating Conditions -30°C to 65°C (-22°F to 149°F) ,humidity lower than 90%RH
- Reset : yes
- Demist : Demist by heating the glass
- Material : ADC12
- Dimensions : Ø 166 mm × 375 mm (Ø 6.5" × 14.7")
- Weight : Approx. 2.4 kg (13.2 lb.)
