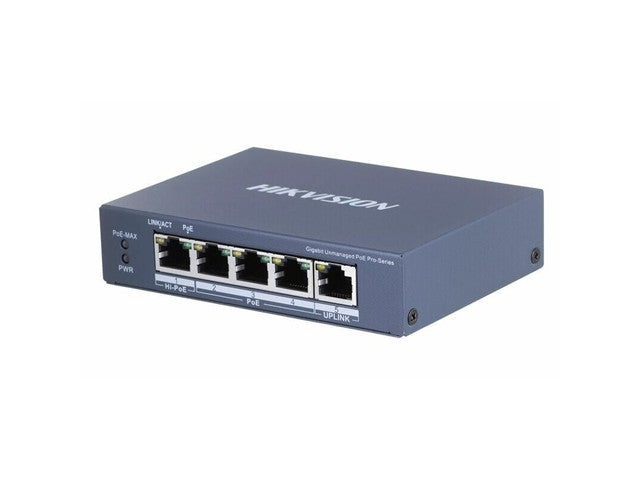

• 3 × gigabit PoE port, 1 × gigabit Hi-PoE port and 1 × gigabit RJ45 port.
• IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).
• IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab standard.
• 6 kV surge protection for PoE ports.
• Up to 300 m long-range transmission.
• PoE watchdog to auto detect and restart the cameras that do not respond.
• Port isolation to improve network security.
• Gigabit network access design.
• Wire-speed forwarding.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design.

General

• Shell : Metal material, fan-free design
• Net Weight : 0.27 kg (0.59 lb)
• Dimensions (W × H × D) : 121.0 mm × 88.1 mm × 27.6 mm (4.76'' × 3.47'' × 1.09'')
• Gross Weight : 0.43 kg (0.95 lb)
• Operating Temperature : 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity : 5% to 95% (no condensation)
• Relative Humidity : 5% to 95% (no condensation)
• Power Supply : 48 VDC, 1.35 A
• Max. Power Consumption : 65 W
• Power Consumption in Idle : 5 W
• Installation Mode : Desk-Mounted
• Surge Protection : 6 KV

Network Parameters

• Ports : 4 × Gigabit PoE port,1 × Gigabit RJ45 port
• MAC Address Table : 2 K
• Switching Capacity : 10 Gbps
• Packet Forwarding Rate : 7.44 Mpps
• Internal Cache : 1 Mbits

Dialing Function

• Long Range
  • Ports 3 to 4: up to 300 m
  • Long range performance may vary depend on camera model or cable condition.
• Port Isolation : Ports 1 to 4: port isolation mode to improve network security.
• PoE Watchdog : Ports 1 to 4: auto detect and restart the cameras that do not respond.

PoE Power Supply

• PoE Standard : IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
• PoE Power Pin : 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE Port
  • Hi-PoE: Port 1
  • PoE: Ports 2 to 4
• Max. Port Power
  • Port 1: 60 W
  • Ports 2 to 4: 30 W
• PoE Power Budget : 60 W

Approval

• EMC : FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• Safety : UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• Chemistry : CE-RoHS (2011/65/EU)

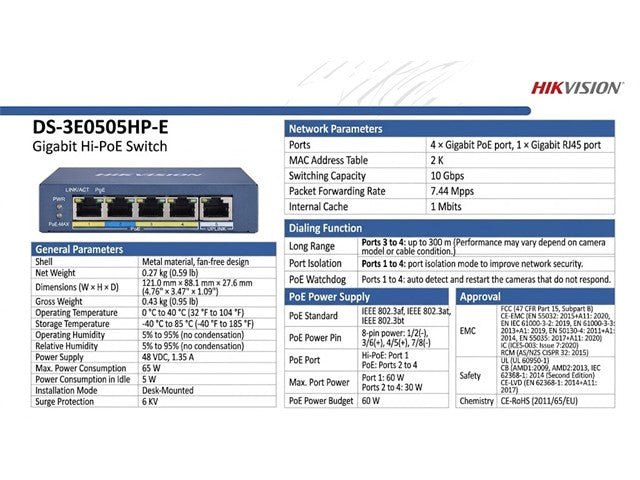

1. Datasheet - HKV DS-3E0505HP-E
