Hikvision Smart Managed 24-Port POE Switch, 10/100Mbps PoE RJ45 ports, 2 x Gigabit Combo Ports , IEEE 802.3af, IEEE 802.3at, 370W, 6KV Surge Protection, Full Duplex, MDIMDI-X Adaptive, 3.8kg

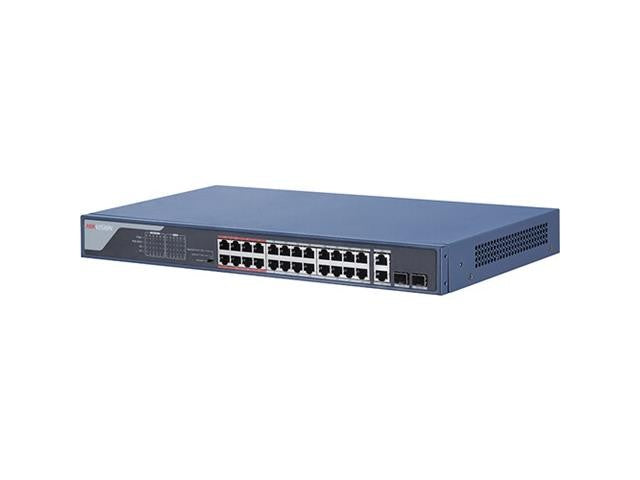

Smart Managed 24-Port POE Switch
Features
- 24 × 100 Mbps PoE RJ45 ports, 2 × gigabit combos.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6 KV surge protection for PoE ports.
- AF/AT camera can reach up to 300 m in extend mode.

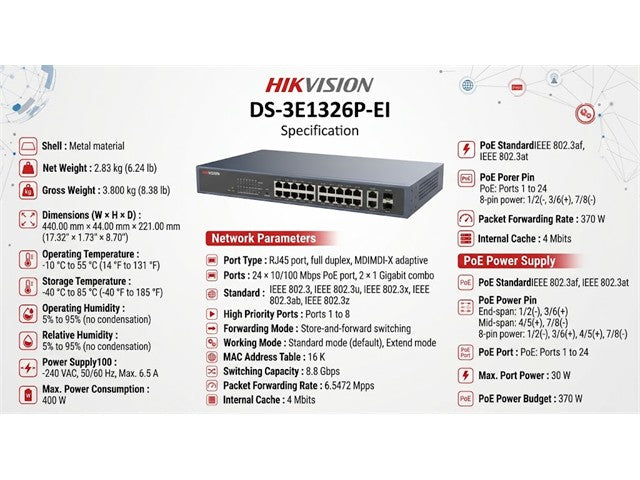

Specifications
General
-
Shell : Metal material
-
Net Weight : 2.83 kg (6.24 lb)
-
Gross Weight : 3.800 kg (8.38 lb)
-
Dimensions (W × H × D) : 440.00 mm × 44.00 mm × 221.00 mm (17.32'' × 1.73'' × 8.70'')
-
Operating Temperature : -10 °C to 55 °C (14 °F to 131 °F)
-
Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
-
Operating Humidity : 5% to 95% (no condensation)
-
Relative Humidity : 5% to 95% (no condensation)
-
Power Supply100 : -240 VAC, 50/60 Hz, Max. 6.5 A
-
Max. Power Consumption : 400 W
Network Parameters
-
Port Type : RJ45 port,full duplex,MDIMDI-X adaptive
-
Ports : 24 × 10/100 Mbps PoE port,2 × 1 Gigabit combo
-
Standard : IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z
-
High Priority Ports : Ports 1 to 8
-
Forwarding Mode : Store-and-forward switching
-
Working Mode : Standard mode (default),Extend mode
-
MAC Address Table : 16 K
-
Switching Capacity : 8.8 Gbps
-
Packet Forwarding Rate : 6.5472 Mpps
-
Internal Cache : 4 Mbits
PoE Power Supply
-
PoE StandardIEEE 802.3af,IEEE 802.3at
-
PoE Power Pin
- End-span: 1/2(-), 3/6(+)
- Mid-span: 4/5(+), 7/8(-)
- 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
-
PoE Port : PoE: Ports 1 to 24
-
Max. Port Power : 30 W
-
PoE Power Budget : 370 W
Downloads
Additional Information
Device |
Switch |
Type |
Smart Managed | 24-Port | POE |
