Hikvision Wireless 4G LTE4 Router, AC1200 Dual Band, 2.4GHz@300Mbps, 5GHz@867Mbps , 2× High Gain Antennas, 2 × RJ45, 10/100 Mbps auto-negotiation, 2 × 2 MIMO supported, WPA-PSK, WPA2-PSK, WPA & WPA2 Supported, 233.9×151.4 x 40.3mm, PSU:9VDC 1A

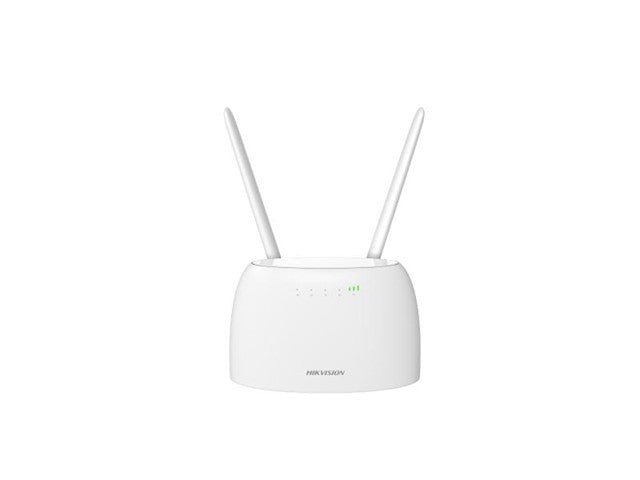

Wireless 4G LTE4 Router
Features
- AC1200 Dual-band Wi-Fi
- 4G Boost Faster Speed
- Instantly Access a Mobile Network With a SIM Card
Specifications
General
-
Product Dimensions (W × H × D) : 233.9mm×151.4mm×40.3mm
-
Package Dimensions (W × H × D) : 405mm×307mm×80mm
-
Net Weight : 0.560kg
-
Packing List
- 4G LTE Router × 1
- Power Adapter × 1
- Detachable Antenna × 2
- Ethernet Cable × 1
- SIM Card Adapter × 1
- Quick Start Guide × 1
- Regulatory Compliance and Safety Information × 1
-
Packing Method : Single pack
-
Working Temperature : 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
-
Working Humidity : 10% to 90% RH non-condensing
-
Storage Temperature : -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
-
Storage Humidity : 5% to 90% RH non-condensing
-
Installation Mode : Desktop installation
-
Max. Power Consumption : ≤ 9 W
-
Gross Weight : 0.620 kg
Wireless Parameter
-
Max. Transmission Rate of Air Interface
- ≤ 1167 Mbps
- 2.4 GHz: 300 Mbps
- 5 GHz: 867 Mbps
-
Wireless Standard : IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
-
Working Frequency Band : 2.4 GHz，5 GHz
-
Transmitting Power : 16dBm @ 2.4G-mcs7、17dBm @ 5G-mcs9
-
Wireless Performance : 2*2 MIMO supported
-
Receiving Sensitivity
- -58 ± 2 dB@AC80 -MCS9
- -84 ± 2 dB@AC80 -MCS0
-
Antenna : 2 high gain antennas
-
Network Type : LTE CAT.4
-
Mobile Standards : FDD LTE, TDD-LTE,WCDMA
-
Mobile Bands : 4G FDD LTE: B1/B3/B7/B8/B20/B28AB,4G TDD-LTE: B38/B40/B41,3G WCDMA: B1/B8
-
4G Speed : DL: 150 Mbps, Upload: 50 Mbps
Hardware Parameter
-
Network Interface : 2 × RJ45, 10/100 Mbps auto-negotiation
-
LED Indicator : power LED*1、internet LED*1、WiFi LED*1、RJ45 LED*1、LTE LED*3
-
Reset : Reset button*1
-
Power Supply Method : 9 VDC, 1 A power adapter power supply
-
Power Specifications : 9 VDC, 1 A
Software Function
-
Application Function
- 3G/4G Route Mode, Wireless Router Mode, and AP Mode supported
- DHCP Server supported
- Guest Network Configuration supported
- Signal Adjustment supported
- WiFi Schedule supported
-
Security Mode : WPA-PSK, WPA2-PSK, WPA and WPA2 supported
-
Security Mechanism : Hide SSID
-
Management Method : Web
-
Upgrade : Web
-
System Log : System log
Downloads
Additional Information
| Device |
Router |
| Type |
Wireless | 4G | LTE4 |
