• Deep learning algorithm
• 4.3-inch capacitive touch screen, 2 MP wide-angle dual-lens
• 3,000 face capacity, 3,000 card capacity, 3,000 fingerprint capacity and 150,000 event capacity
• Multiple authentication modes, including face, fingerprint and card, etc.
• Face recognition duration < 0.2 s/User
• Supports mask wearing detection
• Connects to external access controller or Wiegand card reader via Wiegand protocol
• Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
• Two-way audio with client software, door station, indoor station, and main station

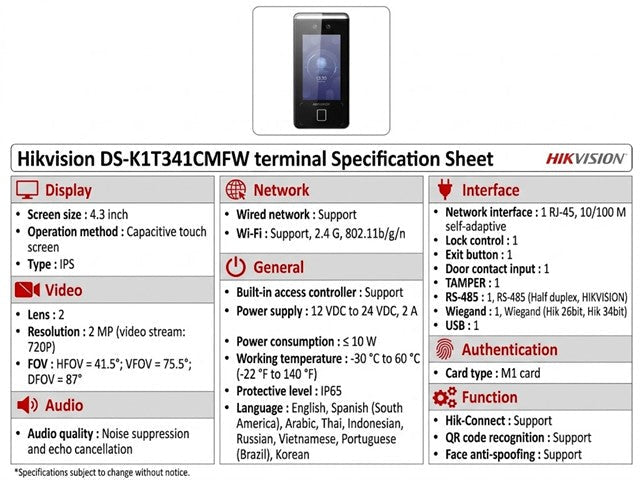

Display

• Screen size : 4.3 inch
• Operation method : Capacitive touch screen
• Type : IPS

Video

• Lens : 2
• Resolution : 2 MP (video stream: 720P)
• FOV : HFOV = 41.5°; VFOV = 75.5°; DFOV = 87°

Audio

• Audio quality :Noise suppression and echo cancellation

Network

• Wired network : Support
• Wi-Fi : Support, 2.4 G, 802.11b/g/n

Interface

• Network interface : 1 RJ-45, 10/100 M self-adaptive
• Lock control : 1
• Exit button : 1
• Door contact input : 1
• TAMPER : 1
• RS-4851,RS-485 (Half duplex,HIKVISION）
• Wiegand : 1,Wiegand （Hik 26bit,Hik 34bit）
• USB : 1

Authentication

• Card typeM : 1 card

General

• Built-in access controller : Support
• Power supply : 12 VDC to 24 VDC, 2 A
• Power consumption : ≤ 10 W
• Working temperature : -30 °C to 60 °C (-22 °F to 140 °F)
• Protective level : IP65
• Language : English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean

Function

• Hik-Connect : Support
• QR code recognition : Support
• Face anti-spoofing : Support

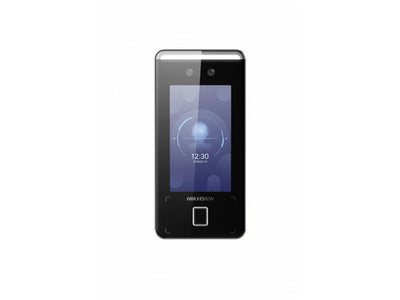

1. Datasheet - HKV DS-K1T341CMFW
