• Accidental press protection
• Fully remote configurable through APP
• IP66 daily environment protection
• Frequency hopping against jamming for reliable transmission
• Optional lanyard and wristband accessory available

• Button : 1
• Tamper Protection : None
• Signal Strength Indicator : Support

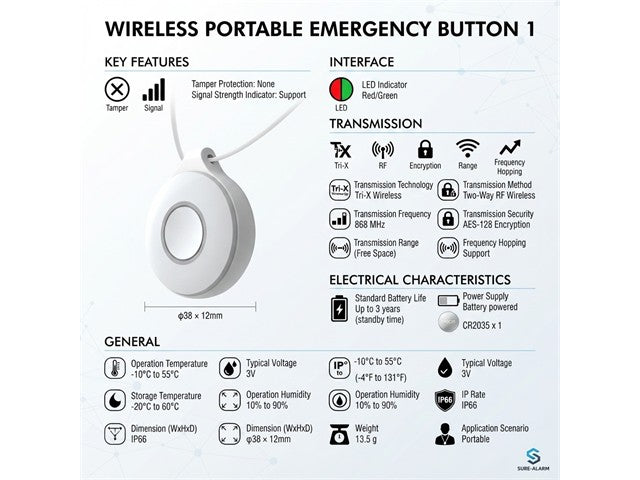

Interface

• LED Indicator : Red/Green

Transmission

• Transmission Technology : Tri-X Wireless
• Transmission Method : Two-Way RF Wireless
• Transmission Frequency : 868 MHz
• Transmission Security : AES-128 Encryption
• Transmission Range(Free Space) : 1 km
• Frequency Hopping : Support
• Enrolling Method Power : up, Remote ID, QR Code

Electrical Characteristics

• Standard Battery Life : Up to 3 years (standby time)
• Power Supply : Battery powered
• Battery Type : CR2035 x 1
• Typical Voltage : 3V

General

• Operation Temperature : -10°C to 55°C (14°F to 131°F)
• Storage Temperature : -20°C to 60°C (-4°F to 140°F)
• Operation Humidity : 10% to 90%
• IP Rate : IP66
• Dimension(WxHxD) : φ38 × 12mm
• Weight : 13.5 g
• Application Scenario : Portable

1. Datasheet - HKV DS-PDEBP1-EG2-WE
