Hikvision Wireless Single Input Transmitter 868MHz, Two-Way Communication, 2GFSK, RF Distance:1700M, 1 x Serial Port, Alarm I/P:1 Alarm, 1 Tamper, Alarm O/P:1 PGM, AM/Output, 3.3v Output:1, Up To 10mA, Battery Type:CR123x3, Max Current:47.85mA
Wireless Single Input Transmitter
Overview

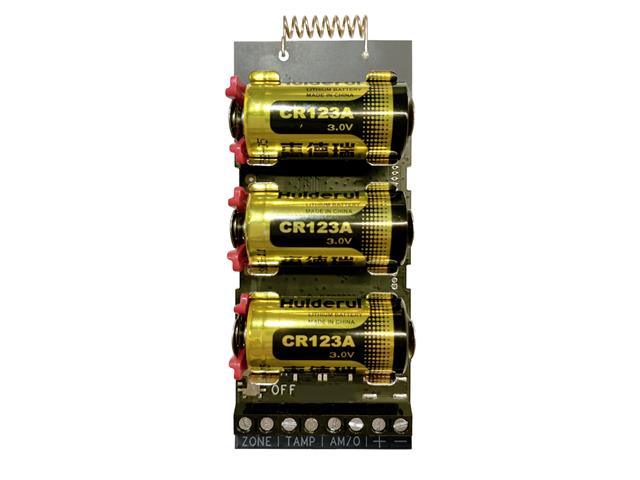

DS-PM1-I1-WE wireless single input transmitter offers a
connection of third party wired detectors like outdoor
PIR, to AX PRO alarm system. The alarm types and zone
parameters can be set through APP by installers easily,
small size design is convenient for installation. Also,
transmitter has a feature of detecting device removal by
accelerometer application, if someone moves the
detector away, an alarm will be reported immediately.
Features
- Small size design, which can be put into wired detector easily
- 868MHz two-way wireless communication
- LED display, show the real status of device
- With one tamper input and one PGM, can be used as zone input or alarm outpout
- With 3.3v voltage output, can be used to power up external wired detector
- Detection of device removal by accelerometer
Specifications
Hardware features
- Serial port : 1
- Power switch : 1
- Alarm input : 1 Alarm, 1 Tamper
- Alarm output : 1 PGM, AM/Output
- 3.3v Output : 1, up to 10mA
Electrical characteristics
- Power supply : 3 CR123
- Operation humidity : 10%~90%
- Operation temperature : –10°C ~ 55°C
- Power consumption
- Quiescent current: 40.29 uA
- Max current: 47.85mA
- Voltage: 3 VDC
- Battery life span : More than 5 years (report alarm 50 times per day)
Wireless transmission
- RF frequency : 868MHz
- RF method : Two-way communication
- RF modulation : 2GFSK
- RF distance : 1700m
Display
- Indicator : 3: Alarm/Tamper(Red), Fault(Amber), Signal Strength
(Green/Red)
General
- Installation method : Put inside Wireless Ready Detector
- Dimension(WxHxD) : 102*41*20mm
- Weight : 35g(Without Battery), 90g(With Battery)
Downloads
Additional Information
| Device |
Transmitter |
| Type |
Wireless | Single | Input |
Enhance your home security with the HKV DS-PM1-I1-WE Wireless Single Input Transmitter. This compact device features 868MHz two-way communication, ensuring seamless integration with your AX PRO alarm system. With a long RF distance of 1700m and tamper detection, it provides reliable protection for your wired detectors, all while being easy to install and manage through an app. Enjoy peace of mind knowing your safety is in capable hands.
