• TCP/IP, Wi-Fi, and 3/4G network
• New generation wireless protocol: Tri-X/Cam-X
• Long RF transmission distance
• Two-way communication with AES-128 encryption
• Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders, 8 tag readers and keypads
• Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
• Voice prompt
• Configuration via Web client, mobile client, and Convergence Cloud
• Hik-Connect and Hik-Partner Pro configuration depends on the user access level
• Pushes alarm notification via messages or phone calls
• Views live videos from Hik-Connect
• Alarm video clips via emails and APP
• Supports LED indicator to indicates system status
• 4520 mAh lithium backup battery
• SIA-DC09 protocol, and supports both Contact ID and SIA data format
• Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

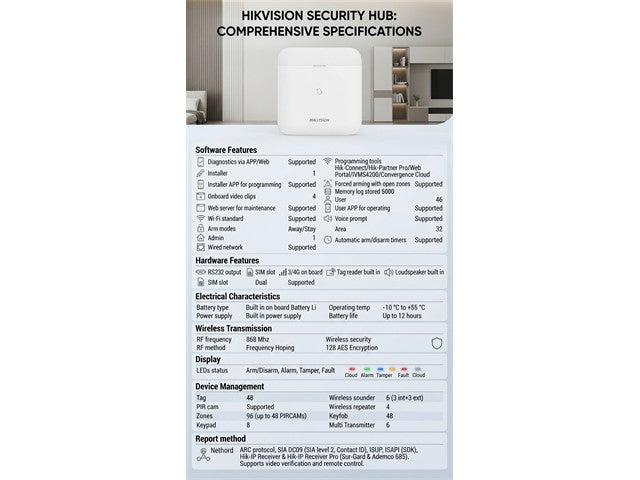

Software features

• Diagnostics via the APP or Web : Supported
• Installer : 1
• Installer APP for programming : Supported
• Onboard video clips : 4
• Web server for maintenance (offline configuration) : Supported
• Wi-Fi standard : Supported
• Arm modes : Away/Stay
• Firmware upgrade APP/Web Portal
• Admin : 1
• Wired network : Supported
• Programming tools : Hik-Connect/Hik-Partner Pro/Web Portal/IVMS4200/Convergence Cloud
• Forced arming with open zones : Supported
• Memory log stored : 5000
• User : 46
• User APP for operating : Supported
• Voice prompt : Supported
• Area : 32
• Automatic arm/disarm timers : Supported

Hardware features

• RS232 output : Supported
• SIM slot : Dual
• 3/4G on board : Supported
• Tag reader built in : Supported
• Loudspeaker built in : Supported

Electrical characteristics

• Battery type : Built in on board Battery Li
• Power supply : Built in power supply
• Operation temperature : -10 °C to +55 °C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
• Battery life span : Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)

Wireless transmission

• RF frequency : 868 Mhz
• RF method : Support
• Wireless security : Frequency Hoping 128 AES Encryption

Display

• LEDs status : Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power

General

• Dimension(WxHxD) : 170.0 mm (6.7") × 170.0 (6.7") mm × 38.6 mm (1.5")
• Shell material : Plastic
• Color : White
• Weight : 557.5 g (19.7 oz)

Device management

• Tag : 48
• PIR cam : Supported
• Zones : 96 (up to 48 PIRCAMs)
• Keypad : 8 (including tag reader)
• Wireless sounder : 6 (3 internal+3 external)
• Wireless repeater : 4
• Keyfob : 48
• Multi Transmitter : 6

Report method

• ARC protocol
  • SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK)
  • Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)
  • Supports video verification and remote control

1. Datasheet - HKV DS-PWA96-M-WE
