KG20-T104D

SKU: KG20-T104D

BRAND: Kraus & Naimer

In Stock
R 937.25_{(inc VAT)}
R 815.00_{(ex VAT)}

Collections: Loadshedding, Power

Type: Solar

Category: Loadshedding, Single String DC Switch Disconnector, Solar Accessories

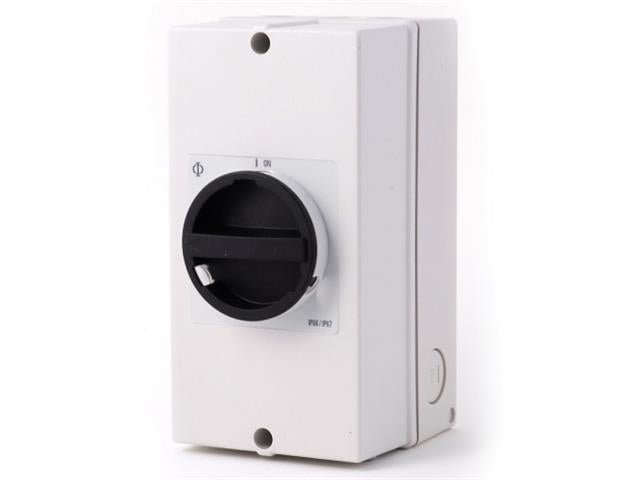

Single String DC Switch Disconnector 25A 450V - 11A 920V , Max Cable:6mm , 85X160X82mm , 048kg

Single String DC Switch Disconnector

Specifications

IP66/67 Protection
Black/Grey Padlockable Handle – lockable in the OFF-position
Class II compliant, Grey Insulated Enclosure
Switch Interlocked with lid to prevent opening in “ON” position
Rated for use in ambient temperatures of 50°C
Plastic enclosures, protection IP66/67, totally insulated, knock-outs
Black handle, grey plate packing
Contact development: 2 pole, 4 contacts per circuit (2 x 2 in series)
Dimensions (w x h x d): 85mm x 160mm X 82mm
Weight: 0.474 kg
Rated Power: 6,000 W
Poles: 2
Max Cable: 6 mm2
Max Voltage: 920 V
Rated Current: 25 A
Rated Voltage: 450 V
Rated Current: 21 A
Rated Voltage: 500 V
Rated Current: 20 A
Rated Voltage: 650 V
Rated Current: 18 A
Rated Voltage: 800 V
Rated Current: 11 A
Rated Voltage: 920 V

Downloads

Datasheet - KG20-T104D

Additional Information

Device	Switch Disconnector
Type	Single String \| DC
