LASER MD2000AT

SKU: LASER MD2000AT

BRAND: Mindeo

In Stock
R 603.75_{(inc VAT)}
R 525.00_{(ex VAT)}

Collections: Computing & Peripherals

Type: Printers & Accessories

Category: Barcode Readers

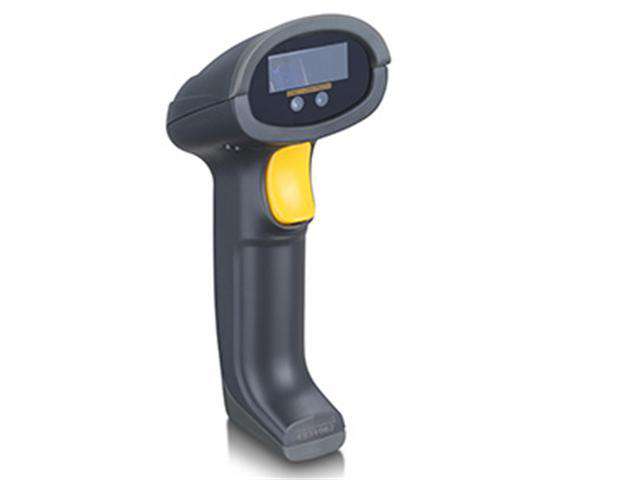

Handheld USB Laser Barcode Scanner

Overview

Features

Ergonomic, snappy and stylish design.
Suitable to operate in diverse working environment.
Read all major 1D symbols.
Maximal decode rosulution at 3mil or 5mil.
Infra-red auto-induction.
Mirror surface reflection cancellation.
Ready for all POS systems.
Easy firmware upgrade

Specification

Input Voltage : VDC ±0.25V
Power : 525mW (Operating), 850 mW (Man)
Current : 70mA (Standby); 105mA (Operating), 170mA (Max)
Laser : 630-650nm laser diode
Decoding rate : 200 times/sec
Scanning angle : ±60°, ±65°, ±420 (Skew. Pitch, Roll)
Print contract : 25% minimum reflection difference
Decode capability : UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8. ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Coda 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Coda 128, UCC/EAN 128, ISBT 128. Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey. China Post, Tolapen, GSI Databar (formerly RSS) variants
Indicator : Beeper, LED
Interface Supported : RS-232, USB Keyboard, USB virtual COM
Operating mode : Hand-held. Auto-detection (Optional)
Dimensions : 76mm x 66.5mm x 168mm
Weight : 121g without cable
Cable : Straight 2.0m
Connector type : RJ-45 phone jack connector
Case material : ABS
Exit window material : PC
Temperature : 0° to 50°, Operating, -40° to60°C, Storage
Humidity : 5% to 95% (non-condensing)
Programming method : Manual (reading special barcode)
Program upgrade : Online
Decoding depth & Min element width
Long Range Series

3 mil : 27-65mm
4 mil : 27-60mm
5 mil: 18-132mm
10 mil : 10-132mm
13 mil : 16-380mm
15 mil :13-500mm
20 mil: 19-620mm
30 mil: 25-770mm

High-Quality Series

3 mil : 12-71mm
4 mil : 12-65mm
5 mil : 16-130mm
10 mil : 5-312mm
13 mil : 11- 375mm
15 mil : 7-477mm
20 mil : 10-540mm
30 mil : 20-675mm

Safety

Laser Safety : EN60825-1, Class 1.
EMC: EN55022, EN55024
Electrical Safety : EN60950-1
Drop resistance : 30+ times 2.0m (6.5ft) drops to concrete
Protection class : IP50
