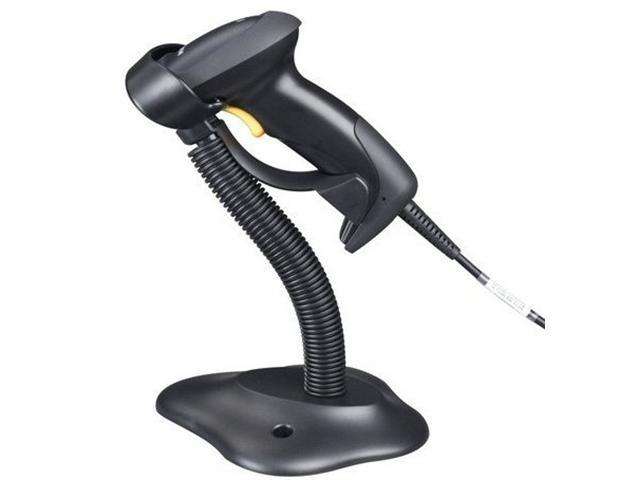

LASER MD2250AT+

• Maximal decode resolution at 5mil
• Long decode range up to 1.5 meters
• Decode all major 1D barcode symbologies including GS1 DataBar
• Mirror surface reflection cancellation
• Over ten-million times for button-press
• With IP52 high performance ingress protection
• Passed multiple 4.0-meters-high drop test
• Ready for all POS systems
• Easy firmware upgrade
• Flexible software customization
• Ergonomic, snappy and stylish design

• Input Voltage : 5 VDC ± 0.25V
• Power : 500 mW (Operating); 950 mW (Max.)
• Current : 100 mA (Operating); 190 mA (Max.)
• Standby Current : <250μA
• Laser : 650nm Laser Diode
• Decoding Rate : 200 Times/sec
• Scanning Angle : ±60°, ±65°, ±42° (Skew, Pitch, Roll)
• Decode Capability : All major 1D barcode symbologies including GS1 DataBar variants
• Indicator : Beeper, LED
• Interface Supported : Keyboard wedge, RS-232, USB Keyboard, USB virtual COM
• Operating Mode : Hand-held, Infra-red induction for MD2250AT Plus & MD2230AT Plus
• Dimensions : 9.5cm H × 6.7cm W × 15.4cm D
• Weight : 168g, Without Cable
• Cable : Straight 2.0m
• Connector Type : RJ-45 phone jack connector
• Case Material : PC+TPU
• Temperature : 0° to 50°C (32° to 120°F), Operating; -40° to 60°C (-40° to 140°F), Storage
• Humidity : 5% to 95% (non-condensing)
• Programming Method : Manual (reading special barcode)
• Program Upgrade : Online

Decoding Depth & Max. Resolution:

• 5 mil: 40-110mm
• 10 mil: 10-280mm
• 13 mil: 15-315mm
• 16 mil: 25-385mm
• 35 mil: 145-630mm

Safety:

• Laser Safety : EN60825-1, Class 1
• EMC : EN 55022, EN 55024
• Electrical Safety : EN 60950-1
• Drop Resistance : Multiple 4.0m (13.1 ft) drops to concrete
• Protection Class: IP52
