LD05-23B05R2

SKU: LD05-23B05R2

BRAND: Mornsun

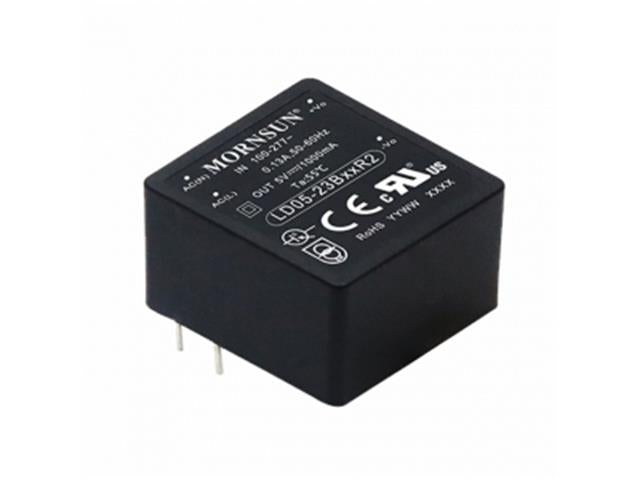

Encapsulated Mini PCB Mount Switch Mode Power Supply Input: 85 ~ 305VAC/100 - 430VDC. Output 5VDC @ 1A.

PCB Mount Switch Mode Power Supply

Specifications

  • Number of Outputs 1
  • Voltage - Input 85 ~ 305 VAC, 100 ~ 430 VDC
  • Voltage - Output 1 5V
  • Current - Output (Max) 1A
  • Power (Watts) 5 W


Applications : Household Appliances, ITE (Commercial)

  • Operating Temperature : -40°C ~ 85°C (With Derating)
  • Efficiency : 77.5%
  • Mounting Type : Through Hole
  • Package / Case : 5-DIP Module, 4 Leads
  • Size / Dimension : 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm)
  • Approval Agency : CB, CE, cURus
  • Line Regulation : ±0.5%
  • Load Regulation : ±1%

Downloads

Additional Information

Device Power Supply
Type Mini | PCB Mount | Switch Mode
