LDE60-20B12A4S

Name: LDE60-20B12A4S - Communica [Part No: LDE60-20B12A4S]
Brand: Mornsun
SKU: LDE60-20B12A4S
Price: 477.50 ZAR
Availability: InStock

SKU: LDE60-20B12A4S

BRAND: Mornsun

R 549.13_{(inc VAT)}
R 477.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Power

Type: Power Supplies

Category: Din Rail Power Supply, Switch Mode Power Supplies

Encapsulated DIN Rail Switch Mode Power Supply Input: 85 ~ 264VAC/100 - 370VDC. Output 12VDC @ 5A. Terminal Block Term. 4KVAC Isolation

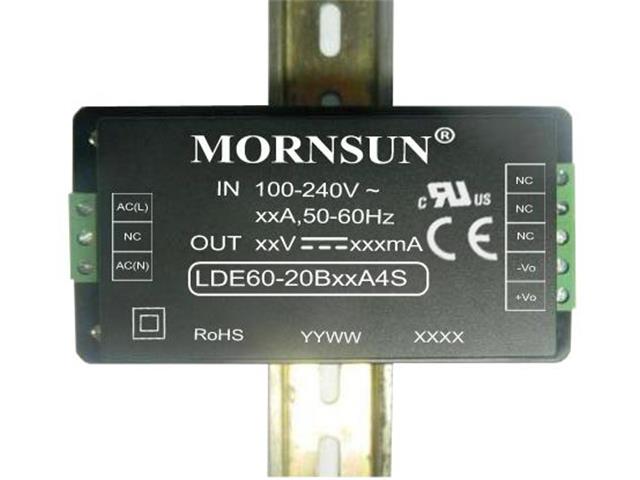

Encapsulated DIN Rail Switch Mode Power Supply

Overview

LDE60-20Bxx series is one of Mornsun’s compact size power converter. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability, high power density, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/UL/EN62368 standards. The converters are widely used in industrial, power, instrumentation, communication and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

Feature

Universal 85-264VAC or 100-370VDC input voltage
Operating ambient temperature range: -40℃ to +70℃
High I/O isolation test voltage up to 4000VAC
High reliability, high power density, high efficiency
Output short circuit, over-current, over-voltage protection
Regulated output, low ripple & noise
Plastic case meets UL94V-0 flammability
EMI performance meets CISPR32 / EN55032 CLASS B

Downloads

Datasheet-LDE60-20Bxx

Additional Information

Device	AC/DC Convertor
Type	Encapsulated DIN Rail \| Switch Mode
Size	137.00 x 70.00 x 42.40 mm

The LDE60-20B12A4S encapsulated DIN Rail switch mode power supply delivers reliable 12VDC power at 5A, with universal input from 85-264VAC or 100-370VDC. Designed for high efficiency and durability, it features reinforced isolation and robust protection against short circuits and over-voltage, making it ideal for industrial, communication, and instrumentation applications. Upgrade your power solutions with this compact and efficient converter for enhanced performance and peace of mind.
