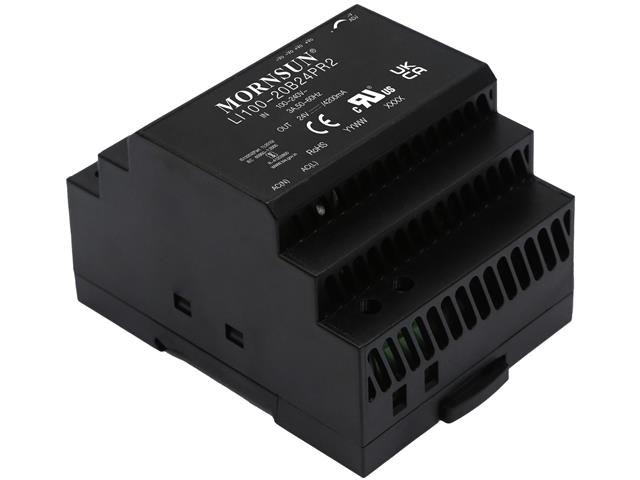

LI100-20B24PR2

SKU: LI100-20B24PR2

BRAND: Mornsun


DIN Rail Plastic Case Switch Mode Power Supply Input: 90 ~ 264VAC/120 - 370VDC. Output 24VDC @ 4,2A 4KVAC Isolation (HDR-100-24)

Plastic Case Switch Mode Power Supply

Overview

LI100-20B24PR2 is Mornsun’s AC-DC converter featuring a cost-effective, energy efficient solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC are safety approved to IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. These light weight AC-DC converters also have an extremely compact design for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.

Feature

  • Universal 85 - 264VAC or 120 - 370VDC Input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -40℃ to +70℃
  • High I/O isolation test voltage up to 4000VAC
  • Industrial product technology design
  • Over-voltage class III (Designed to meet EN61558 safety standards)
  • Low standby power consumption, high efficiency
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage protection
  • EN62368 safety approved

Specifications

Type DIN Rail Single Output
Output Power 100.8W
Series LI100-20B
Part Number LI100-20B24PR2
Mount DIN-Rail
IP Level  Non-Waterproof
Output Voltage 24V
Output Current 4.2A
Input voltage range 85-264VAC; 120-370VDC
Inrush current (max.) Cold start, 70A at 230VAC
Output voltage adjustable range 21.6-29V
Efficiency at 230VAC 90%
Max. capacitive load 2500µF
Input current (max.) 1.6A at 230VAC
Short circuit protection Hiccup, continuous, self-recovery
Over-current protection 110%-200% Io, self-recovery
Withstand voltage 300VAC
Working temperature -40 - 70°C
Connection Terminal block

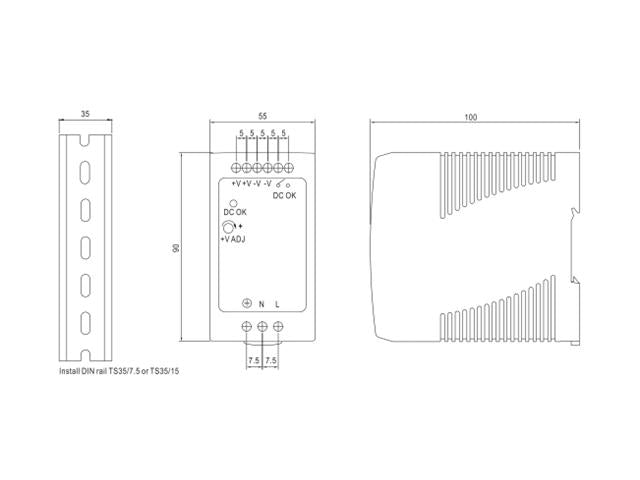

Package dimensions 70 x 92.66 x 58 mm
Weight 235 gm
Cooling method Free air convection
Case material Plastic, heat-resistant (UL94V-0)
MTBF >300000 Hrs
Safety class CLASS II
Safety standards UL62368/EN62368/IEC62368
EMC standards CISPR32/EN55032 CLASS B, CISPR32/EN55032 CLASS B, IEC/EN61000-4-3 10V/m
Certification CE, RoHS
Warranty 3 years

Downloads

Additional Information

Device Power Supply
Type Plastic Case | Switch Mode
